  • ESDS 4000 series

  • ESDS 4024B

  • High density dual controller 2U 24-bay compact storage systems designed for 2.5” drives and purpose-built to handle intense data throughput loads. It is capable of up to 11,000MB/s read and 4,200MB/s write. EonStor DS 4024B has a unique dual host board design that expands hybrid interconnectivity possibilities for a more diverse storage network, and fully integrates 12Gb/s SAS technology both host-side and drive-side for high speed data transfer.







    Features Specifications Purchase Reference Related Information

    • Features

      		 　

      Benefits

      Up to 11,000MB/s read and 4,200MB/s write performance

      		 　 Double the performance of similar competing systems in the mid-range segment
      　 High performance ideal for media editing, database, and VDI applications

      Dual controllers and redundant power supplies

      		 　 Fast failover performance and high data availability

      Dual host board and hybrid design

      		 　 Doubled and expandable bandwidth
      　 Multiply the flexibility and connection versatility of networked storage
      　 Combine diverse connectivity environments on one system for greater utility

      Full 12Gb/s SAS integration, including drive and host sides

      		 　 Speeds up performance with the latest 12Gb/s SAS technology

      Up to 444 HDD support

      		 　 Expand storage to 2,664TB using a total 444 drives via JBOD enclosures.
      　 "Pay-as-you-grow" scalability, no worries for present budget or what you will need in the future

      SSD cache and tiering solutions

      		 　 SSD cache solution - up to 16X more read IOPS and 88% lower latency for the hottest data
      　 Automated tiering - leverage SSD speed and HDD capacity

      Intelligent Drive Recovery (IDR)

      		 　 Smarter media scan and effortless drive clone and replace

      Secure remote replication

      		 　 The backup to offsite locations provides very reliable and safe disaster recovery

      SED compatible

      		 　 Virtually unbreakable hardware encryption

      Tiered event messages

      		 　 Clear and easily actionable system notifications keep you informed and in control

      Thin provisioning

      		 　 Improve storage utilization up to 80% - get more for your investment

      Multi-target snapshot

      		 　 With up to 4096 targets, always have backups to recover vital data at different points in time

      Multi-pair volume copy/mirror

      		 　 Up to 64 pairs ensure entire volumes can be backed up with minimal effort as data grows

      SANWatch 3.0 interface

      		 　 User friendly browser-based deployment and management

      Intelligent drive spin-down and 80 PLUS power supplies

      		 　 Lower costs through reduced power draw and longer drive lifespan

      Super capacitor backup with flash module

      		 　 Deliver power and securely save cached data to flash modules during electric grid outages

    • Host Ports
       (Dual Host Boards for One Controller)

      		 　 Onboard Gb/s ports
      　 Four 1Gb/s iSCSI ports (2 per controller)
      　 More host options:
      　 Pure options:
      　 Eight 16Gb/s Fibre Channel ports (4 per controller)
      　 Sixteen 8Gb/s Fibre Channel ports (8 per controller)
      　 Eight or sixteen 10Gb/s iSCSi ports/ SFP+ (4 or 8 per controller)
      　 Eight 12Gb/s SAS ports (4 per controller)
      　 Sixteen FCoE ports (8 per controller)
      　 Hybrid options**:
      　 Eight or sixteen 10Gb/s iSCSi ports/ SFP+ and eight 16Gb/s Fibre Channel ports
      　 Eight or sixteen 10Gb/s iSCSi ports/ SFP+ and eight 8Gb/s Fibre Channel ports
      　 ** Host board 1 and host board 2

      Controller

      		 　 Dual redundant controllers

      Cache Memory

      		 　 Default 4GB (2x2GB), up to 8GB (4x2GB), 16GB (4x4GB) or 32GB (4x8GB)
      　 ** Default installed memory may vary by model, region, and other factors. Contact our sales representatives for details.

      Drive Connectivity

      		 　 12Gb/s SAS connectivity
      　 S.M.A.R.T. support
      　 Automatic bad-sector reassignment
      　 Dedicated bandwidth to each connected drive

      Supported Drives

      		 　 2.5" SAS SSDs
      　 2.5" SATA SSDs*
      　 2.5" 10,000 RPM SAS drives
      　 * MUX board required when using SATA drives
      　 ** For the latest compatibility details, please refer to the Compatibility Matrix.

      Maximum Number of Drives

      		 　 Per system: 24
      　 Via JBOD: 444

      Corresponding Expansion Enclosure

      		 　 Please refer to datasheet

      Rack Support

      		 　 2U, 19-inch rackmount

      RAID Functionality

      		 　 Global, dedicated or enclosure hot-spare
      　 RAID levels supported : RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60
      　 Online expansion by:
      　 Adding new drives
      　 Copying and replacing drives with drives of larger capacity
      　 RAID migration
      　 Configurable stripe size and write policy per system
      　 Intelligent drive handling
      　  In degraded mode: skips irreparable blocks to continue rebuild
      　  In normal operation: data-block verification and repair

      Data Services

      		 　 Thin provisioning
      　 SSD Cache*
      　 SED (Self-encrypting drives)
      　 Automated storage tiering*
      　 Local replication**
      　 Snapshot
      　 Volume copy/ mirror
      　 Remote replication*
      　 Synchronous or asynchronous
      　 * Optional
      　 ** Available with Standard license and optional Advanced license

      Green Design

      		 　 80 PLUS-certified power supplies delivering more than 80% energy efficiency
      　 Intelligent multi-level drive spin-down

      Availability and Reliability

      		 　 Redundant, hot-swappable hardware modules
      　 CacheSafe technology
      　 Multi-pathing support (EonPath)
      　 Device mapper support

      Notification

      		 　 Various event notification methods including email, LAN broadcast, fax, SNMP trap and SMS.

      Management

      		 　 Web-based SANWatch management software
      　 RS232 serial port for local access to firmware-embedded utility
      　 Automated cache flush and caching mode operation per enclosure status
      　 Telnet and SSH system monitoring via Ethernet
      　 Platform-independent firmware management GUI
      　 Module status LED indicators: component presence detection & thermal sensors via I2C bus

      Service and Support

      		 　 Standard service: 3-year limited hardware/software warranty and 8x5 phone, web, and email support
      　 ​Upgrade/Extension service*: replacement part dispatch on the next business day (up to 5 years)
      　 Advanced Service: 24x7 phone, web and email support + onsite diagnostics on the next business day
      　 ​Premium Service: 24x7 phone, web and email support + onsite diagnostics in 4 hours
      　 * Optional
      　 ** Service may vary by region

      Power

      		 　 Power supplies: Two 530W
      　 AC voltage: 100VAC @ 10A to 240VAC @ 5A with PFC (auto-switching)
      　 Frequency: 50-60 Hz

      Environmental

      		 　 Temperature:
      　 Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
      　 Non-operating: -40 to 60°
      　 Altitude: Sea level to 3660m (12,000ft) operating / sea level to 12,192m (40,000ft) non-operating
      　 Relative humidity: 5 to 95% non-condensing, operating and non-operating

      Regulatory

      		 　 Safty: UL, BSMI, CB, EAC
      　 Electromangnetic Campatibility: CE, BSMI, FCC, KC

      Dimensions

      		 　 448mm (W) x 88mm (H) x 500mm (D)
      　 **Without chassis ears / protrusions

      Weight

      		 　 19.58kg/ 43.17lbs (without HDDs)

      Package Dimensions

      		 　 770mm (W) x 350mm (H) x 580mm (D)

    • The “Purchase Reference” feature enables customers to request a quote from Infortrend sales representatives. Please note that actual product orders and purchases are not processed via Infortrend's website. If you wish to order and purchase Infortrend products, please contact our sales representatives directly.

      Please note the following:

      1. The list below is based on standard worldwide shipment, models may vary by region. Infortrend sales representatives can provide more information about shipment variations in your region.
      2. “Default Included” means that a component is standard included in system orders. Customers may order additional units to serve as spare components.


      System

      DS4024RTCB00B

      		 　 　 　 EonStor DS 4000 2U/24bay, high IOPS, dual redundant controller subsystem including 4x12Gb/s SAS EXP. ports, 4x1G iSCSI ports +4x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 2x(SuperCap.+Flash module), 24xHDD trays and 1xRackmount kit

      DS4024RTCB00C

      		 　 　 　 EonStor DS 4000 2U/24bay, high IOPS, dual redundant controller subsystem including 4x12Gb/s SAS EXP. ports, 4x1G iSCSI ports +4x host board slot(s), 4x2GB, 2x(PSU+FAN Module), 2x(SuperCap.+Flash module), 24xHDD trays and 1xRackmount kit

      DS4024RTCB00D

      		 　 　 　 EonStor DS 4000 2U/24bay, high IOPS, dual redundant controller subsystem including 4x12Gb/s SAS EXP. ports, 4x1G iSCSI ports +4x host board slot(s), 4x4GB, 2x(PSU+FAN Module), 2x(SuperCap.+Flash module), 24xHDD trays and 1xRackmount kit

      DS4024RTCB00F

      		 　 　 　 EonStor DS 4000 2U/24bay, high IOPS, dual redundant controller subsystem including 4x12Gb/s SAS EXP. ports, 4x1G iSCSI ports +4x host board slot(s), 4x8GB, 2x(PSU+FAN Module), 2x(SuperCap.+Flash module), 24xHDD trays and 1xRackmount kit

      DS4024STCB00B

      		 　 　 　 EonStor DS 4000 2U/24bay, high IOPS, single upgradable to redundant controller subsystem including 2x12Gb/s SAS EXP. ports, 2x1G iSCSI ports +2x host board slot(s), 1x2GB, 2x(PSU+FAN Module), 1x(SuperCap.+Flash module), 24xHDD trays and 1xRackmount kit

      DS4024STCB00C

      		 　 　 　 EonStor DS 4000 2U/24bay, high IOPS, single upgradable to redundant controller subsystem including 2x12Gb/s SAS EXP. ports, 2x1G iSCSI ports +2x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 1x(SuperCap.+Flash module), 24xHDD trays and 1xRackmount kit

      DS4024STCB00D

      		 　 　 　 EonStor DS 4000 2U/24bay, high IOPS, single upgradable to redundant controller subsystem including 2x12Gb/s SAS EXP. ports, 2x1G iSCSI ports +2x host board slot(s), 2x4GB, 2x(PSU+FAN Module), 1x(SuperCap.+Flash module), 24xHDD trays and 1xRackmount kit

      DS4024STCB00F

      		 　 　 　 EonStor DS 4000 2U/24bay, high IOPS, single upgradable to redundant controller subsystem including 2x12Gb/s SAS EXP. ports, 2x1G iSCSI ports +2x host board slot(s), 2x8GB, 2x(PSU+FAN Module), 1x(SuperCap.+Flash module), 24xHDD trays and 1xRackmount kit

      Host Board

      RES10G1HIO2-0010

      		 　 　 　

      EonStor host board with 2 x 10Gb/s iSCSI (SFP+), type2

      RFC16G1HIO2-0010

      		 　 　 　

      EonStor host board with 2 x 16Gb/s FC, type2

      RFE16G1HIO4-0010

      		 　 　 　 EonStor converged host board with 4 x 8Gb/s FC ports, or 2 x 16Gb/s FC ports, or 4 x 10Gb/s iSCSI, type2

      RSS12G1HIO2-0010

      		 　 　 　 EonStor host board with 2 x 12Gb/s SAS ports, type 2

      Hard Disk Drive/Solid State Drive/MUX Board

      9AHMUX3G-0010

      		 　 　 　

      MUX board for DS 3000(2.5" SATA drives), DS 1000(3.5",2.5" SATA drives), DS 2000(3.5",2.5" SATA drives) and DS 4000(3.5",2.5" SATA drives)

      H1090XB1XX1-0030

      		 　 　 　 HGST 2.5" SAS 6Gb/s HDD 900GB,10000RPM, 1 in 1 Packing

      H72A1XS2XX1-0030

      		 　 　 　 Hitachi SAS 6Gb/s HDD, 2TB, 7200RPM, 1 in 1 Packing

      H72A2XS2XX1-0030

      		 　 　 　 Hitachi SAS 6Gb/s HDD, 3TB, 7200RPM, 1 in 1 Packing

      HELH72S2400-00301

      		 　 　 　 HGST 3.5" SAS 6Gb/s HDD 4TB, 7200RPM, 1 in 1 Packing

      HELH72S2600-00301

      		 　 　 　 HGST SAS 6Gb/s HDD, 6TB, 7200RPM, 1 in 1 Packing

      HELH72S3600-00301

      		 　 　 　 HGST Enterprise 3.5" SAS 12Gb/s HDD, 6TB, 7200RPM, 1 in 1 Packing.

      HELS72S2200-00301

      		 　 　 　 Seagate 3.5" SAS 6Gb/s HDD 2TB, 7200RPM, 1 in 1 Packing

      HELS72S2300-00301

      		 　 　 　 Seagate 3.5" SAS 6Gb/s HDD 3TB, 7200RPM, 1 in 1 Packing

      HELS72S2400-00301

      		 　 　 　 Seagate SAS 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing

      HELT72S2400-00301

      		 　 　 　 Toshiba SAS 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing

      HESH10S3120-00301

      		 　 　 　 HGST Enterprise 2.5" SAS 12Gb/s HDD, 1.2TB, 10000RPM, 1 in 1 Packing.

      HESH10S3180-00301

      		 　 　 　 HGST Enterprise 2.5" SAS 12Gb/s HDD, 1.8TB, 10000RPM, 1 in 1 Packing.

      HESH15S3030-00301

      		 　 　 　 HGST Enterprise 2.5" SAS 12Gb/s HDD, 300GB, 15000RPM, 1 in 1 Packing.

      HESH15S3060-00301

      		 　 　 　 HGST Enterprise 2.5" SAS 12Gb/s HDD, 600GB, 15000RPM, 1 in 1 Packing.

      HEST10S2030-00301

      		 　 　 　 Toshiba 2.5" SAS 6Gb/s HDD 300GB, 10000RPM, 1 in 1 Packing

      HEST10S2060-00301

      		 　 　 　 Toshiba 2.5" SAS 6Gb/s HDD 600GB, 10000RPM, 1 in 1 Packing

      HESTSSS3020-00301

      		 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 200GB, 1 in 1 Packing

      HESTSSS3040-00301

      		 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 400GB, 1 in 1 Packing.

      HESTSSS3080-00301

      		 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 800GB, 1 in 1 Packing.

      HESTSSS3160-00301

      		 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 1.6TB, 1 in 1 Packing.

      HFLS72S2400-00301

      		 　 　 　 Seagate Enterprise (SED) 3.5" SAS 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing.

      HNSNSSA3016-00301

      		 　 　 　 Intel Entry 2.5" SATA 6Gb/s MLC SSD (Total 100TB write), 160GB, 1 in 1 Packing.

      HNSNSSA3048-00301

      		 　 　 　 Intel Entry 2.5" SATA 6Gb/s MLC SSD (Total 275TB write), 480GB, 1 in 1 Packing.

      HNSNSSA3060-00301

      		 　 　 　 Intel Entry 2.5" SATA 6Gb/s MLC SSD (Total 330TB write), 600GB, 1 in 1 Packing.

      HNSNSSA3080-00301

      		 　 　 　 Intel Entry 2.5" SATA 6Gb/s MLC SSD (Total 450TB write), 800GB, 1 in 1 Packing.

      Data Service License

      SOFT-DRSDS-0010

      		 　 　 　 EonStor DS Advanced Local Replication License (Snapshot and Volume Copy/Mirror)

      SOFT-REMDS-0010

      		 　 　 　 EonStor DS Remote Replication License

      SOFT-SSDDS01-0010

      		 　 　 　 EonStor DS SSD Cache License

      SOFT-TIERDS-0010

      		 　 　 　 EonStor DS Automated Storage Tiering License(2 tiers)

      SOFT-TIERDS01-0010

      		 　 　 　 EonStor DS Advanced Automated Storage Tiering License(4 tiers)

      Service & Warranty

      WTE2B24G-0010

      		 　 　 　

      1-year extended warranty license for ES/DS B24x-G models and DS 3024GB/4024SB models

      WTE2B24R-0010

      		 　 　 　 1-year extended warranty license for ES/DS B24x-R models and DS 3024RB/4024RB models

      Cable/SFP Module

      9270CFCCAB04-0010

      		 　 　 　

      Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 1 Meter

      9270CFCCAB05-0010

      		 　 　 　 Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 5 Meters

      9270CFCCAB06-0010

      		 　 　 　 Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 10 Meters

      9370AYCAB-0010

      		 　

      Default Included

      		 　 RS232 Y-cable for dual-controller subsystems, min. USB to DB-9; maintenance-free during controller failover/failback

      9370CmSASCab1-0030

      		 　 　 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 50 Centimeters

      9370CmSASCab2-0030

      		 　 　 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 120 Centimeters

      9370CmSASCab3-0030

      		 　 　 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 260 Centimeters

      9370CSFP10G-0010

      		 　 　 　 10G BASE-SR SFP+ Transceiver, LC, multi-mode

      9370CSFP16G-0010

      		 　 　 　 16Gb/s Fibre Channel SFP optical transceiver, LC, wave-length 850nm, multi-mode

      9370CSFP8G-0010

      		 　 　 　 Fibre Channel 8.5 / 4.25 / 2.125 GBd Small Form Pluggable Optical Transceiver, LC, wave-length 850nm, multi-mode

      HBA Card

      BH1EMF210-0010

      		 　 　 　 HBA card, LPe12000, FC-8G, Single port, 1 in 1 package

      BH1EMF211-0010

      		 　 　 　 HBA card, LPe12002, FC-8G, Dual ports, 1 in 1 package

      BH1EMF310-0010

      		 　 　 　 HBA card, LPe16000B, FC-16G, Single port, 1 in 1 package

      BH1EMF311-0010

      		 　 　 　 HBA card, LPe16002B, FC-16G, Dual ports, 1 in 1 package

      BH1LSS210-0010

      		 　 　 　 HBA card, LSI SAS9200-8E, SAS 6G, PCI-e 2.0, Dual port (SFF8088), 1 in 1 package, 3-year warranty

      BH1QGF210-0010

      		 　 　 　 HBA card, QLE2562, FC-8G, Dual port, 1 in 1 package

      BH1QGF211-0010

      		 　 　 　 HBA card, QLE2560, FC-8G, Single port, 1 in 1 package

      BH1QGF310-0010

      		 　 　 　 HBA card, QLE2670, FC-16G, Single port, 1 in 1 package

      BH1QGF311-0010

      		 　 　 　 HBA card, QLE2672, FC-16G, Dual port, 1 in 1 package

      BH4LSS210-0010

      		 　 　 　 HBA card, LSI SAS 9207-8e, SAS 6G, PCI-e 3.0, Dual port (SFF8088), 1 in 1 package, 3-year warranty

      BH4LSS310-0010

      		 　 　 　 HBA card, LSI SAS9300-8E, SAS 12G, PCI-e 3.0, Dual port (SFF8644), 1 in 1 package, 3-year warranty

      Controller Module

      8BSC40R24TCB-0010

      		 　 　 　 Controller module w/2GB DDR-III & 2x host board slot & 1x (Super capacitor+Flash module), DS 4024RBT/DS 4024SBT subsystem

      8BSC40R24TCC-0010

      		 　 　 　 Controller module w/4GB DDR-III & 2x host board slot & 1x (Super capacitor+Flash module), DS 4024RBT/DS 4024SBT subsystem

      8BSC40R24TCD-0010

      		 　 　 　 Controller module w/8GB DDR-III & 2x host board slot & 1x (Super capacitor+Flash module), DS 4024RBT/DS 4024SBT subsystem

      8BSC40R24TCF-0010

      		 　 　 　 Controller module w/16GB DDR-III & 2x host board slot & 1x (Super capacitor+Flash module), DS 4024RBT/DS 4024SBT subsystem

      Other Accessories

      9571CEAR-0010

      		 　 　 　 Rack ear assembly, for ESDS 1000/2000/4000 subsystems, 19" rack depth

      9571CSLIDER-0010

      		 　

      Default Included (China Excluded)

      		 　 Slide rail assembly, for ESDS 1000/2000/4000 subsystems, 23"~37" rack depth

      9572SCBM-0010

      		 　

      Default Included

      (by region)

      		 　 Cache backup module, Super capacitor , Flash, for DS 4000

      9572SCBU-0010

      		 　

      For Super Cap replacement

      		 　 Capacitor backup unit, Super capacitor, for DS 4000

      9DCETRAY-0030

      		 　 　 　 2.5” Hard disk drive tray for ESDS 1000/2000/4000 2U 24-bay

      DDR3NNCMB2-0010

      		 　 　 　 2GB DDR-III DIM module for EonStor DS, EonNAS and ESVA subsystem

      DDR3NNCMC4-0010

      		 　 　 　 4GB DDR-III DIM module for EonStor DS, EonNAS and ESVA subsystem

      DDR3NNCMD-0010

      		 　 　 　 8GB DDR-III DIM module for EonStor DS, EonNAS and ESVA subsystem

      N3012PSU-0010

      		 　 　 　 Power supply module, for EonNAS, EonStor DS, JB 3000 system, 530W capacity
    • Data Service
      EonStor DS License System
      EonStor DS Compatibility Matrix
      EonStor DS Expansion Guide
      EonStor DS 4000 Hardware Manual

  • ESDS 4024B

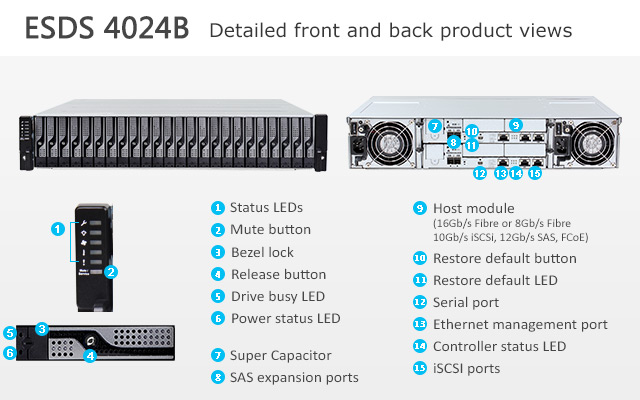

  • High density dual controller 2U 24-bay compact storage systems designed for 2.5” drives and purpose-built to handle intense data throughput loads. It is capable of up to 11,000MB/s read and 4,200MB/s write. EonStor DS 4024B has a unique dual host board design that expands hybrid interconnectivity possibilities for a more diverse storage network, and fully integrates 12Gb/s SAS technology both host-side and drive-side for high speed data transfer.







ESDS 4016
JB 2012

Comment
