  • ESDS 3060

  • High availability and space-saving high density combine in a dual controller 4U 60-bay storage system. In addition to large capacity and extreme reliability, it enhances SMB and enterprise SAN/DAS applications with fast performance, modular components for convenient deployment and upgrades, strong data integrity, friendly management, and extensive software bundles.


    Features Specifications Purchase Reference Related Information

    • Product advantages



      Rich data services

      • Thin provisioning increases storage utilization to 80%
      • 128-target snapshot included (upgradable to 4096 targets)
      • 64 replication pair volume mirror/copy (upgradable to 256)
      • SSDs offer a number of major benefits compared to spin storage, such as accelerated performance to meet higher intensity requirements and lower power consumption
      • Remote replication backs up data to offsite locations for reliable disaster recovery


      Easy upgradable host interface module

      • Choose 8Gb/s or 16Gb/s Fibre Channel, 1Gb/s or 10Gb/s iSCSI, or 6Gb/s or 12Gb/s SAS based on your needs and budget
      • Hybrid hosts for diverse environments on one system, e.g. Fibre Channel/SAS and onboard iSC



      Enhanced system maintenance

      • Clear system messages make troubleshooting easy
      • Smart media scan prevents data errors and corruption

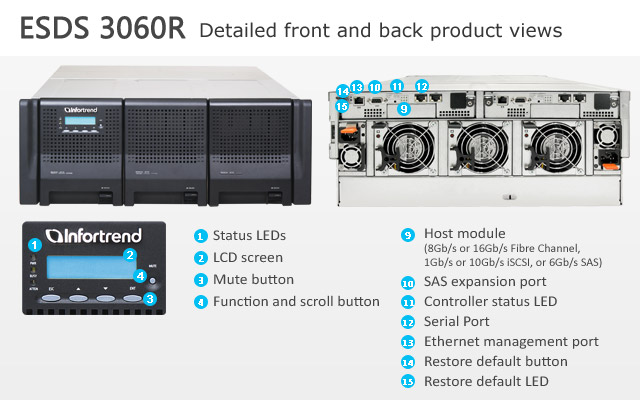

      • Front LCD display and LED indicators on both panels make system settings and information instantly accessible.

      High performance and scalability

        • Up to 1.3M IOPS and 5,500 Mbps throughput
        • Ideal for database and VDI applications, while massive bandwidth enhances media editing and surveying jobs
        • Up to an extra 360 drives via Infortrend JB 2000 enclosures , 1,440TB space total, each drive up to 4T



        High density rackmount design

        • 60 disk drives fit a single 4U chassis
        • 3 convenient hot plug drive drawers open with one-hand ease
        • Up to 360TB per system in a space-saving form factor
        • Drives slot in vertically for easy push and pull access

        Multiple management tools available

          • Exclusive SANWatch 3.0 browser-based interface allows consolidated storage management
          • Embedded RAIDWatch 3.0 with performance enhancement
          • Powerful CLI and command editing features





          Features

          		 　

          Benefits

          Up to 1.3M IOPS and 5,500 Mbps throughput

          		 　 High IOPS ideal for database and VDI applications, while massive bandwidth enhances media editing and surveying jobs

          Dual controllers and redundant power supplies

          		 　 Fast failover performance and high data availability

          Scalability

          		 　 Expand storage to 2,160TB using a total 360 drives via JBOD enclosures

          Hybrid host interface with optional onboard iSCSI

          		 　 Combine diverse connectivity environments on one system for greater utility

          Multiple host interface options

          		 　 Choose 8Gb/s or 16Gb/s Fibre Channel, 1Gb/s or 10Gb/s iSCSI, or 6Gb/s or 12Gb/s SAS based on your needs and budget

          Tiered event messages

          		 　 Clear and easily actionable system notifications keep you informed and in control

          Smart media scan

          		 　 Works in the background to enhance data integrity and prevent corruption

          Thin provisioning

          		 　 Improve storage utilization up to 80% - get more for your investment

          Multi-target snapshot

          		 　 With up to 4096 targets, always have backups to recover vital data at different points in time

          Multi-pair volume copy/mirror

          		 　 Up to 64 pairs ensure entire volumes can be backed up with minimal effort as data grows

          SANWatch 3.0 interface

          		 　 User friendly browser-based deployment and management

          Intelligent drive spin-down and 80 PLUS power supplies

          		 　 Lower costs through reduced power draw and longer drive lifespan

          High Density

          		 　 Accommodates 60 drives in a single 4U chassis with a convenient 3-drawer design





        • Host Ports

          		 　 Onboard Gb/s ports
          　 Four 1Gb/s iSCSI ports (2 per controller)
          　 More host options:
          　 Four 16Gb/s Fibre Channel ports (2 per controller)
          　 Eight 8Gb/s Fibre Channel ports (4 per controller)
          　 Four 10Gb/s iSCSi ports/ SFP+ or RJ-45 (2 per controller)
          　 Eight 1Gb/s iSCSI ports (4 per controller)
          　 Four 12Gb/s SAS ports (2 per controller)
          　 Four 6Gb/s SAS ports (2 per controller)

          Controller

          		 　 Dual redundant controllers

          Cache Memory

          		 　 Default 4GB (2x2GB), up to 8GB (4x2GB), 16GB (4x4GB) or 32GB (4x8GB)
          　 ** Default installed memory may vary by model, region, and other factors. Contact our sales representatives for details.

          Drive Connectivity

          		 　 6Gb/s SAS connectivity
          　 S.M.A.R.T. support
          　 Automatic bad-sector reassignment
          　 Dedicated bandwidth to each connected drive

          Supported Drives

          		 　 3.5” 7,200 RPM 6Gb/s Nearline SAS drives - 1TB , 2TB, 3TB, 4TB, 6TB
          　 ** For the latest compatibility details, please contact our sales representatives

          Maximum Number of Drives

          		 　 Per system: 60
          　 Via JBOD: 360

          Corresponding Expansion Enclosure

          		 　 Please refer to Related Information

          Form Factor

          		 　 4U

          RAID Functionality

          		 　 Global, dedicated or enclosure hot-spare
          　 RAID levels supported : RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60
          　 Online expansion by:
          　 Adding new drives
          　 Copying and replacing drives with drives of larger capacity
          　 RAID migration
          　 Configurable stripe size and write policy per system
          　 Intelligent drive handling
          　  In degraded mode: skips irreparable blocks to continue rebuild
          　  In normal operation: data-block verification and repair

          Data Services

          		 　 Thin provisioning
          　 SSD Cache*
          　 SED (Self-encrypting drives)
          　 Automated storage tiering*
          　 Local replication**
          　 Snapshot
          　 Volume copy/ mirror
          　 Remote replication*
          　 Synchronous or asynchronous
          　 * Optional
          　 ** Available with Standard license and optional Advanced license

          Green Design

          		 　 High-efficiency power supplies
          　 Intelligent multi-level drive spin-down

          Availability and Reliability

          		 　 Redundant, hot-swappable hardware modules
          　 CacheSafe technology
          　 Multi-pathing support (EonPath)
          　 Device mapper support

          Notification

          		 　 Various event notification methods including email, LAN broadcast, fax, SNMP traps, SMS, and Skype.

          Management

          		 　 Web-based SANWatch management software
          　 RS232 serial port for local access to firmware-embedded utility
          　 Automated cache flush and caching mode operation per enclosure status
          　 Telnet and SSH system monitoring via Ethernet
          　 Platform-independent firmware management GUI
          　 LCD keypad panel for monitoring and access to all configuration options
          　 Module status LED indicators: component presence detection & thermal sensors via I2C bus

          OS Support

          		 　 Windows Server 2003
          　 Windows Server 2008, 2008 R2 (including Hyper-V)
          　 RedHat Enterprise Linux
          　 SUSE Linux Enterprise
          　 Sun Solaris
          　 Mac OS X
          　 VMware
          　 Citrix
          　 IBM AIX
          　 HP-UX
          　 ** For the latest OS support details, please contact our sales representatives.

          Service and Support

          		 　 Standard service: 2-year limited hardware/software warranty and 8x5 phone, web, and email support
          　 ​Upgrade/Extension service*: replacement part dispatch on the next business day (up to 5 years)
          　 Advanced Service: 24x7 phone, web and email support + onsite diagnostics on the next business day
          　 ​Premium Service: 24x7 phone, web and email support + onsite diagnostics in 4 hours
          　 * Optional
          　 ** Service may vary by region

          Power

          		 　 Power supplies: Two 1600W
          　 AC voltage: 200VAC@ 10A to 240VAC @ 5A with PFC (auto-switching)
          　 Frequency: 47-63Hz

          Environmental

          		 　 Temperature: 0 to 35°C operating/ -40 to 60°C non-operating
          　 Altitude: Sea level to 3660m (12,000ft) operating / sea level to 12,192m (40,000ft) non-operating
          　 Relative humidity: 5 to 95% non-condensing, operating and non-operating

          Regulatory

          		 　 Safty: UL, BSMI, CB, EAC
          　 Electromangnetic Campatibility: CE, BSMI, FCC, KC

          Dimensions

          		 　 446mm (W) x 176mm (H) x 882mm (D)
          　 **Without chassis ears / protrusions

          Weight

          		 　 68.4kg/ 150.80lbs (without HDDs)

          Package Dimensions

          		 　 630mm (W) x 426mm (H) x 1150mm (D) including paper pallet
          　 630mm (W) x 670mm (H) x 1150mm (D) including HDD packages



        • The “Purchase Reference” feature enables customers to request a quote from Infortrend sales representatives. Please note that actual product orders and purchases are not processed via Infortrend's website. If you wish to order and purchase Infortrend products, please contact our sales representatives directly.


          Please note the following:


          1. The list below is based on standard worldwide shipment, models may vary by region. Infortrend sales representatives can provide more information about shipment variations in your region.
          2. “Default Included” means that a component is standard included in system orders. Customers may order additional units to serve as spare components.


          System
          DS3060G0E000B 　 　 　 EonStor DS 3000 4U/60bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 2x1G iSCSI ports +1x host board slot(s), 1x2GB, 2xPSUs, 3xFAN modules, 60xHDD trays and 1xRackmount kit
          DS3060G0E000C 　 　 　 EonStor DS 3000 4U/60bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 2x1G iSCSI ports +1x host board slot(s), 2x2GB, 2xPSUs, 3xFAN modules, 60xHDD trays and 1xRackmount kit
          DS3060G0E000D 　 　 　 EonStor DS 3000 4U/60bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 2x1G iSCSI ports +1x host board slot(s), 2x4GB, 2xPSUs, 3xFAN modules, 60xHDD trays and 1xRackmount kit
          DS3060G0E000F 　 　 　 EonStor DS 3000 4U/60bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 2x1G iSCSI ports +1x host board slot(s), 2x8GB, 2xPSUs, 3xFAN modules, 60xHDD trays and 1xRackmount kit
          DS3060GTE000B 　 High IOPS solution 　 EonStor DS 3000 4U/60bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Port, 2x1G iSCSI ports +1x host board slot(s), 1x2GB, 2xPSUs, 3xFAN modules, 60xHDD trays and 1xRackmount kit
          DS3060GTE000C 　 High IOPS solution 　 EonStor DS 3000 4U/60bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Port, 2x1G iSCSI ports +1x host board slot(s), 2x2GB, 2xPSUs, 3xFAN modules, 60xHDD trays and 1xRackmount kit
          DS3060GTE000D 　 High IOPS solution 　 EonStor DS 3000 4U/60bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Port, 2x1G iSCSI ports +1x host board slot(s), 2x4GB, 2xPSUs, 3xFAN modules, 60xHDD trays and 1xRackmount kit
          DS3060GTE000F 　 High IOPS solution 　 EonStor DS 3000 4U/60bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Port, 2x1G iSCSI ports +1x host board slot(s), 2x8GB, 2xPSUs, 3xFAN modules, 60xHDD trays and 1xRackmount kit
          DS3060R0E000B 　 　 　 EonStor DS 3000 4U/60bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 4x1G iSCSI ports +2x host board slot(s), 2x2GB, 2xPSUs, 3xFAN modules, 2x(BBU+Flash module), 60xHDD trays and 1xRackmount kit
          DS3060R0E000C 　 　 　 EonStor DS 3000 4U/60bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 4x1G iSCSI ports +2x host board slot(s), 4x2GB, 2xPSUs, 3xFAN modules, 2x(BBU+Flash module), 60xHDD trays and 1xRackmount kit
          DS3060R0E000D 　 　 　 EonStor DS 3000 4U/60bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 4x1G iSCSI ports +2x host board slot(s), 4x4GB, 2xPSUs, 3xFAN modules, 2x(BBU+Flash module), 60xHDD trays and 1xRackmount kit
          DS3060R0E000F 　 　 　 EonStor DS 3000 4U/60bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 4x1G iSCSI ports +2x host board slot(s), 4x8GB, 2xPSUs, 3xFAN modules, 2x(BBU+Flash module), 60xHDD trays and 1xRackmount kit
          DS3060RTE000B 　 High IOPS solution 　 EonStor DS 3000 4U/60bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 4x1G iSCSI ports +2x host board slot(s), 2x2GB, 2xPSUs, 3xFAN modules, 2x(BBU+Flash module), 60xHDD trays and 1xRackmount kit
          DS3060RTE000C 　 High IOPS solution 　 EonStor DS 3000 4U/60bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 4x1G iSCSI ports +2x host board slot(s), 4x2GB, 2xPSUs, 3xFAN modules, 2x(BBU+Flash module), 60xHDD trays and 1xRackmount kit
          DS3060RTE000D 　 High IOPS solution 　 EonStor DS 3000 4U/60bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 4x1G iSCSI ports +2x host board slot(s), 4x4GB, 2xPSUs, 3xFAN modules, 2x(BBU+Flash module), 60xHDD trays and 1xRackmount kit
          DS3060RTE000F 　 High IOPS solution 　 EonStor DS 3000 4U/60bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 4x1G iSCSI ports +2x host board slot(s), 4x8GB, 2xPSUs, 3xFAN modules, 2x(BBU+Flash module), 60xHDD trays and 1xRackmount kit
          Host board
          RER01G0HIO4-0010 　 　 　 EonStor / EonStor DS host board with 4 x 1Gb/s iSCSI ports
          RER10G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 10Gb/s iSCSI (RJ-45) ports
          RES10G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 10Gb/s iSCSI (SFP+) ports
          RFC08G0HIO4-0010 　 　 　 EonStor / EonStor DS host board with 4 x 8Gb/s FC ports
          RFC16G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 16Gb/s FC ports
          RSS06G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 6Gb/s SAS ports
          RSS12G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x12Gb/s SAS ports
          Hard Disk Drive/Solid State Drive/MUX Board
          H1090XB1XX1-0030 　 　 　 HGST 2.5" SAS 6Gb/s HDD 900GB,10000RPM, 1 in 1 Packing
          H72A1XA3XX1-0030 　 　 　 SATA 6Gb/s HDD, 2TB, 7200RPM, 1 in 1 Packing
          H72A1XS2XX1-0030 　 　 　 Hitachi SAS 6Gb/s HDD, 2TB, 7200RPM, 1 in 1 Packing
          H72A2XA2XX1-0030 　 　 　 SATA 6Gb/s HDD, 3TB, 7200RPM, 1 in 1 Packing
          H72A2XS2XX1-0030 　 　 　 Hitachi SAS 6Gb/s HDD, 3TB, 7200RPM, 1 in 1 Packing
          H72A3XA3XX1-0030 　 　 　 Hitachi SATA 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing
          HELH72S2600-00301 　 　 　 HGST SAS 6Gb/s HDD, 6TB, 7200RPM, 1 in 1 Packing
          HELS72A3500-00301 　 　 　 Seagate SATA 6Gb/s HDD, 5TB, 7200RPM, 1 in 1 Packing
          HELS72S2400-00301 　 　 　 Seagate SAS 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing
          HELT72S2400-00301 　 　 　 Toshiba SAS 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing
          HESESSS2020-00301 　 　 　 HGST(sTec) Enterprise 2.5" SAS MLC SSD 200GB, SSD, 1 in 1 Packing
          HESESSS2040-00301 　 　 　 HGST(sTec) Enterprise 2.5" SAS MLC SSD 400GB, SSD, 1 in 1 Packing
          HESESSS2080-00301 　 　 　 HGST(sTec) Enterprise 2.5" SAS MLC SSD 800GB, SSD, 1 in 1 Packing
          HESH10S2120-00301 　 　 　 HGST 2.5" SAS 6Gb/s HDD 1.2TB,10000RPM, 1 in 1 Packing
          HEST10S2030-00301 　 　 　 Toshiba 2.5" SAS 6Gb/s HDD 300GB,10000RPM, 1 in 1 Packing
          HEST10S2060-00301 　 　 　 Toshiba 2.5" SAS 6Gb/s HDD 600GB,10000RPM, 1 in 1 Packing
          HESTSSS3020-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 200GB, 1 in 1 Packing
          HESTSSS3040-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 400GB, 1 in 1 Packing.
          HESTSSS3080-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 800GB, 1 in 1 Packing.
          HESTSSS3160-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 1.6TB, 1 in 1 Packing.
          Data Service License
          SOFT-DRSDS-0010 　 　 　 EonStor DS Advanced Local Replication License (Snapshot and Volume Copy/Mirror)
          SOFT-REMDS-0010 　 　 　 EonStor DS Remote Replication License
          SOFT-SSDDS01-0010 　 　 　 EonStor DS SSD Cache License
          SOFT-TIERDS-0010 　 　 　 EonStor DS Automated Storage Tiering(2 tiers)
          SOFT-TIERDS01-0010 　 　 　 EonStor DS Advanced Automated Storage Tiering License(4 tiers)
          Expansion enclosure
          JB2060G00 　 　 　 4U/60bay Single controller JBOD including 1x 6Gb SAS port, 2x(PSU+FAN module), 60xHDD trays and 1xRackmount kit
          JB2060R00 　 　 　 4U/60bay Dual redundant controller JBOD including 2x 6Gb SAS ports, 2x(PSU+FAN module), 60xHDD trays and 1xRackmount kit
          Service & Warranty
          WTE2DS3060G-0010 　 　 　 1-year extended warranty for ESDS 3060G models
          WTE2DS3060R-0010 　 　 　 1-year extended warranty for ESDS 3060R models
          Cable/SFP Module
          9270CFCCab04-0010 　 Suggested item for 8Gb/16Gb FC and 10Gb iSCSI (SFP+)host 　 Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 1 Meter
          9270CFCCab05-0010 　 Suggested item for 8Gb/16Gb FC host and 10Gb iSCSI (SFP+)host 　 Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 5 Meters
          9270CFCCab06-0010 　 Suggested item for 8Gb/16Gb FC host and 10Gb iSCSI (SFP+)host 　 Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 10 Meters
          9270CmSASCab7-0030 　 　 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 50 Centimeters
          9270CmSASCab8-0030 　 　 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 120 Centimeters
          9270CmSASCab9-0030 　 　 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 260 Centimeters
          9370CmSASCab1-0030 　 　 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 50 Centimeters
          9370CmSASCab2-0030 　 　 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 120 Centimeters
          9370CmSASCab3-0030 　 　 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 260 Centimeters
          9370CSFP10G-0010 　 Suggested item for 10Gb iSCSI (SFP+) host 　 10G BASE-SR SFP+ Transceiver, LC, multi-mode
          9370CSFP16G-0010 　 Suggested item for 16Gb FC host 　 16Gb/s Fibre Channel SFP optical transceiver, LC, wave-length 850nm, multi-mode
          9370CSFP8G-0010 　 Suggested item for 8Gb FC host 　 Fibre Channel 8.5 / 4.25 / 2.125 GBd Small Form Pluggable Optical Transceiver, LC, wave-length 850nm, multi-mode
          9373ASCAB-0010 　 ESDS 3060GE 　 RS-232C cable, DB9 to DB9
          9373AYCAB-0010 　 Default Included for ESDS 3060RE 　 DB-9 Y-cable for dual-controller subsystems; maintenance-free during controller failover/failback
          HBA Card
          BH1EMF210-0010 　 　 　 HBA card,LPe12000, FC-8G, Single port,1 in 1 package
          BH1EMF211-0010 　 　 　 HBA card,LPe12002, FC-8G, Dual port,1 in 1 package
          BH1QGF210-0010 　 　 　 HBA card, QLE2562, FC-8G, Dual port, 1 in 1 package
          BH1QGF211-0010 　 　 　 HBA card, QLE2560, FC-8G, Single port, 1 in 1 package
          Controller module
          84SC30GH60-0010 　 　 　 Controller module w/2GB DDR-III, 2x1G iSCSI ports & 1x host board slot for ESDS 3060GE subsystem
          84SC30GH60MB-0010 　 　 　 Controller module w/2x2GB DDR-III, 2x1G iSCSI ports & 1x host board slot for ESDS 3060GE subsystem
          84SC30GH60MC-0010 　 　 　 Controller module w/2x4GB DDR-III, 2x1G iSCSI ports & 1x host board slotfor ESDS 3060GE subsystem
          84SC30GH60MD-0010 　 　 　 Controller module w/2x8GB DDR-III, 2x1G iSCSI ports & 1x host board slot for ESDS 3060GE subsystem
          84SC30GI60MB-0010 　 High IOPS solution 　 Controller module w/2GB DDR-III, 2x1G iSCSI ports & 1x host board slot for ESDS 3060GTE subsystem
          84SC30GI60MC-0010 　 High IOPS solution 　 Controller module w/2x2GB DDR-III, 2x1G iSCSI ports & 1x host board slot for ESDS 3060GTE subsystem
          84SC30GI60MD-0010 　 High IOPS solution 　 Controller module w/2x4GB DDR-III, 2x1G iSCSI ports & 1x host board slot for ESDS 3060GTE subsystem
          84SC30GI60MF-0010 　 High IOPS solution 　 Controller module w/2x8GB DDR-III, 2x1G iSCSI ports & 1x host board slot for ESDS 3060GTE subsystem
          84SC30RH60MB-0010 　 　 　 Controller module w/2GB DDR-III, 2x1G iSCSI ports & 1x host board slot for ESDS 3060RE subsystem
          84SC30RH60MC-0010 　 　 　 Controller module w/2x2GB DDR-III, 2x1G iSCSI ports & 1x host board slot for ESDS 3060RE subsystem
          84SC30RH60MD-0010 　 　 　 Controller module w/2x4GB DDR-III, 2x1G iSCSI ports & 1x host board slot for ESDS 3060RE subsystem
          84SC30RH60MF-0010 　 　 　 Controller module w/2x8GB DDR-III, 2x1G iSCSI ports & 1x host board slot for ESDS 3060RE subsystem
          84SC30RI60MB-0010 　 High IOPS solution 　 Controller module w/2GB DDR-III, 2x1G iSCSI ports & 1x host board slot for ESDS 3060RTE subsystem
          84SC30RI60MC-0010 　 High IOPS solution 　 Controller module w/2x2GB DDR-III, 2x1G iSCSI ports & 1x host board slot for ESDS 3060RTE subsystem
          84SC30RI60MD-0010 　 High IOPS solution 　 Controller module w/2x4GB DDR-III, 2x1G iSCSI ports & 1x host board slot for ESDS 3060RTE subsystem
          84SC30RI60MF-0010 　 High IOPS solution 　 Controller module w/2x8GB DDR-III, 2x1G iSCSI ports & 1x host board slot for ESDS 3060RTE subsystem
          Other Accessories
          9373CBBU-0010 　 For BBU replacement 　 Battery backup unit, Li-Ion, for EonStor G6 and ESDS series subsystems, BBU ID
          9373CCBM-0010 　 Default Included for ESDS 3060RE 　 Cache backup module, Li-lon, Flash, for EonStor G6 and ESDS series subsystems, BBU ID
          9474CSlider36-0012 　 Default Included 　 Slide rail assembly, for ESDS 4U/60-bay subsystems, 30"~37" rack depth
          9474LOCKERV-0010 　 Default Included 　 3.5" Hard disk drive brackets for ESDS G7i 4U-48bay, ESDS 3048 and ESDS 3060 subsystems
          9475CPSU-0010 　 Default Included 　 Power supply unit for ESDS 4U/60bay subsystems, 1600W capacity
          9475FANMOD-0010 　 Default Included 　 Cooling fan module, for ESDS 4U/60bay subsystems
          9475LOCKER-0010 　 　 　 2.5” Hard disk drive brackets for ESDS 3048/3060 and JB 2048/2060 subsystems
          DDR3NNCMB2-0010 　 　 　 2GB DDR-III DIM module for ESDS 3000/1000/2000 series
          DDR3NNCMC4-0010 　 　 　 4GB DDR-III DIM module for ESDS G7i, ESDS 3000/1000/2000 and ESVA x75 subsystems
          DDR3NNCMD-0010 　 　 　 8GB DDR-III DIM module for ESDS G7i, ESDS 3000/1000/2000 and ESVA x75 subsystems

        • Data Service







      • ESDS 3060

      • High availability and space-saving high density combine in a dual controller 4U 60-bay storage system. In addition to large capacity and extreme reliability, it enhances SMB and enterprise SAN/DAS applications with fast performance, modular components for convenient deployment and upgrades, strong data integrity, friendly management, and extensive software bundles.


      ESDS 3048
      ESDS 4016

      Comment
