  • ESDS 3000 series

  • ESDS 3012

  • High availability dual controller 2U 12-bay storage created for non-stop service in SMB and enterprise SAN/DAS applications. Tap fast performance, modular components, strong data integrity, friendly management, and fully-featured software bundles – all in one complete system.


    *We have multiple model variants available to suit your specific needs. For details, please refer to the datasheet.



    Features Specifications Purchase Reference Related Information

    • Product advantages


      Rich data services

      • Thin provisioning increases storage utilization to 80%
      • 128-target snapshot included (upgradeable to 4096 targets)
      • 64 replication pair volume mirror/copy (upgradable to 256)
      • SSDs offer a number of major benefits compared to spin storage, such as accelerated performance to meet higher intensity requirements and lower power consumption
      • Remote replication backs up data to offsite locations for reliable disaster recovery


      Easy upgradable host interface module

      • Choose 8Gb/s or 16Gb/s Fibre Channel, 1Gb/s or 10Gb/s iSCSI, or 6Gb/s or 12Gb/s SAS based on your needs and budget


      Enhanced system maintenance

      • Clear system messages make troubleshooting easy
      • Smart media scan prevents data errors and corruption

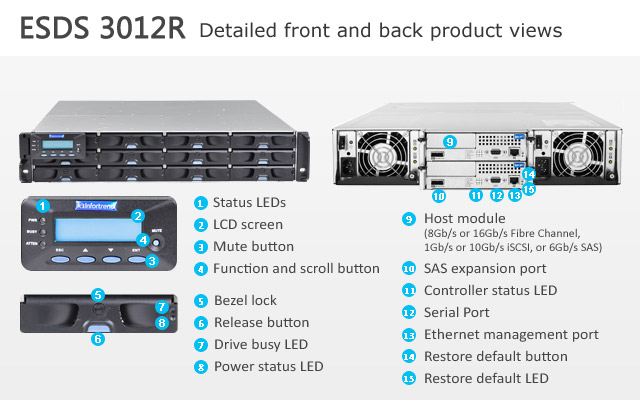

      • Front LCD display and LED indicators on both panels make system settings and information instantly accessible.


      High performance and scalability

      • Up to 1.3M IOPS and 5,500 Mbps throughput
      • Ideal for database and VDI applications, while massive bandwidth enhances media editing and surveying jobs
      • Up to an extra 312 drives via Infortrend JB 2000 enclosures , 1,248TB space total, each drive up to 4TB


      Multiple management tools available

      • Exclusive SANWatch 3.0 browser-based interface allows consolidated storage management
      • Embedded RAIDWatch 3.0 with performance enhancement
      • Powerful CLI and command editing features




      Features 　 Benefits
      Up to 1.3M IOPS and 5,500 Mbps throughput 　 High IOPS ideal for database and VDI applications, while massive bandwidth enhances media editing and surveying jobs
      Dual controllers and redundant power supplies  　 Fast failover performance and high data availability
      Scalability 　 Expand storage to 1,872TB using a total 312 drives via JBOD enclosures
      Multiple host interface options 　 Choose 8Gb/s or 16Gb/s Fibre Channel, 1Gb/s or 10Gb/s iSCSI, or 6Gb/s or 12Gb/s SAS based on your needs and budget
      Tiered event messages 　 Clear and easily actionable system notifications keep you informed and in control
      Smart media scan 　 Works in the background to enhance data integrity and prevent corruption
      Thin provisioning 　 Improve storage utilization up to 80% - get more for your investment
      Multi-target snapshot 　 With up to 4096 targets, always have backups to recover vital data at different points in time
      Multi-pair volume copy/mirror  　 Up to 64 pairs ensure entire volumes can be backed up with minimal effort as data grows
      SANWatch 3.0 interface 　 User friendly browser-based deployment and management
      Intelligent drive spin-down and 80 PLUS power supplies  　 Lower costs through reduced power draw and longer drive lifespan



    • Host Ports 　 Onboard Gb/s ports
      　 Eight 1Gb/s iSCSI ports (4 per controller)
      　 More host options:
      　 Four 16Gb/s Fibre Channel ports (2 per controller)
      　 Eight 8Gb/s Fibre Channel ports (4 per controller)
      　 Four 10Gb/s iSCSi ports/ SFP+ or RJ-45 (2 per controller)
      　 Eight 1Gb/s iSCSI ports (4 per controller)
      　 Four 12Gb/s SAS ports (2 per controller)
      　 Four 6Gb/s SAS ports (2 per controller)
      Controller 　 Dual redundant controllers
      Cache Memory 　 Default 4GB (2x2GB), up to 8GB (4x2GB), 16GB (4x4GB) or 32GB (4x8GB)
      　 ** Default installed memory may vary by model, region, and other factors. Contact our sales representatives for details.
      Drive Connectivity 　 6Gb/s SAS connectivity
      　 S.M.A.R.T. support
      　 Automatic bad-sector reassignment
      　 Dedicated bandwidth to each connected drive
      Supported Drives 　 2.5" SAS SSDs - 200GB, 400GB or 800GB
      　 2.5" SATA SSDs* - 100GB, 200GB, 400GB or 800GB
      　 2.5" 10,000RPM SAS drives - 300GB, 600GB, 900GB or 1.2TB
      　 3.5" 15,000 RPM SAS drives - 300GB, 450GB or 600GB
      　 3.5" 7,200 RPM Nearline SAS drives - 1TB, 2TB,  3TB, 4TB or 6TB
      　 3.5" 7,200 RPM SATA drives* - 1TB, 2TB, 3TB, 4TB or 5TB
      　 *MUX board required when using SATA drives
      　 ** For the latest compatibility details, please contact our sales representatives
      Maximum Number of Drives 　 Per system: 12
      　 Via JBOD: 312
      Corresponding Expansion Enclosure 　 Please refer to Related Information
      Form Factor 　 2U
      RAID Functionality 　 Global, dedicated or enclosure hot-spare
      　 RAID levels supported : RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60
      　 Online expansion by:
      　 Adding new drives
      　 Copying and replacing drives with drives of larger capacity
      　 RAID migration
      　 Configurable stripe size and write policy per system
      　 Intelligent drive handling
      　  In degraded mode: skips irreparable blocks to continue rebuild
      　  In normal operation: data-block verification and repair
      Data Services 　 Thin provisioning
      　 SSD Cache*
      　 SED (Self-encrypting drives)
      　 Automated storage tiering*
      　 Local replication**
      　 Snapshot
      　 Volume copy/ mirror
      　 Remote replication*
      　 Synchronous or asynchronous
      　 * Optional
      　 ** Available with Standard license and optional Advanced license
      Green Design 　 80 PLUS-certified power supplies delivering more than 80% energy efficiency
      　 Intelligent multi-level drive spin-down
      Availability and Reliability 　 Redundant, hot-swappable hardware modules
      　 CacheSafe technology
      　 Multi-pathing support (EonPath)
      　 Device mapper support
      Notification 　 Various event notification methods including email, LAN broadcast, fax, SNMP traps, SMS, and Skype.
      Management 　 Web-based SANWatch management software
      　 RS232 serial port for local access to firmware-embedded utility
      　 Automated cache flush and caching mode operation per enclosure status
      　 Telnet and SSH system monitoring via Ethernet
      　 Platform-independent firmware management GUI
      　 LCD keypad panel for monitoring and access to all configuration options
      　 Module status LED indicators: component presence detection & thermal sensors via I2C bus
      OS Support 　 Windows Server 2003
      　 Windows Server 2008, 2008 R2 (including Hyper-V)
      　 RedHat Enterprise Linux
      　 SUSE Linux Enterprise
      　 Sun Solaris
      　 Mac OS X
      　 VMware
      　 Citrix
      　 IBM AIX
      　 HP-UX
      　 ** For the latest OS support details, please contact our sales representatives.
      Service and Support 　 Standard service: 2-year limited hardware/software warranty and 8x5 phone, web, and email support
      　 ​Upgrade/Extension service*: replacement part dispatch on the next business day (up to 5 years)
      　 Advanced Service: 24x7 phone, web and email support + onsite diagnostics on the next business day
      　 ​Premium Service: 24x7 phone, web and email support + onsite diagnostics in 4 hours
      　 * Optional
      　 ** Service may vary by region
      Power 　 Power supplies: Two 530W
      　 AC voltage: 100VAC @ 10A to 240VAC @ 5A with PFC (auto-switching)
      　 Frequency: 47-63 Hz
      Environmental 　 Temperature:
      　 Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
      　 Non-operating: -40 to 60°
      　 Altitude: Sea level to 3660m (12,000ft) operating / sea level to 12,192m (40,000ft) non-operating
      　 Relative humidity: 5 to 95% non-condensing, operating and non-operating
      Regulatory 　 Safty: UL, BSMI, CB, EAC
      　 Electromangnetic Campatibility: CE, BSMI, FCC, KC
      Dimensions 　 445mm (W) x 88mm (H) x 529mm (D)
      　 **Without chassis ears / protrusions
      Weight 　 18.10kg/ 39.90lbs (without HDDs)
      Package Dimensions 　 779mm (W) x 564mm (H) x 597mm (D)

    • The “Purchase Reference” feature enables customers to request a quote from Infortrend sales representatives. Please note that actual product orders and purchases are not processed via Infortrend's website. If you wish to order and purchase Infortrend products, please contact our sales representatives directly.


      Please note the following:


      1. The list below is based on standard worldwide shipment, models may vary by region. Infortrend sales representatives can provide more information about shipment variations in your region.
      2. “Default Included” means that a component is standard included in system orders. Customers may order additional units to serve as spare components.


      System
      		　 　 　 　
      DS3012G00000B 　 　 　 EonStor DS 3000 2U/12bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 1xhost board slot(s), 1x2GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012G00000C 　 　 　 EonStor DS 3000 2U/12bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 1xhost board slot(s), 2x2GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012G00000D 　 　 　 EonStor DS 3000 2U/12bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 1xhost board slo(s)t, 2x4GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012G00000F 　 　 　 EonStor DS 3000 2U/12bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 1xhost board slot(s), 2x8GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012G0E000B 　 　 　 EonStor DS 3000 2U/12bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports + 1xhost board slo(s)t, 1x2GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012G0E000C 　 　 　 EonStor DS 3000 2U/12bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports + 1xhost board slo(s)t, 2x2GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012G0E000D 　 　 　 EonStor DS 3000 2U/12bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports + 1xhost board slo(s)t, 2x4GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012G0E000F 　 　 　 EonStor DS 3000 2U/12bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports + 1xhost board slo(s)t, 2x8GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012GT0000B 　 High IOPS solution 　 EonStor DS 3000 2U/12bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Port, 1xhost board slot(s), 1x2GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012GT0000C 　 High IOPS solution 　 EonStor DS 3000 2U/12bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Port, 1xhost board slot(s), 2x2GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012GT0000D 　 High IOPS solution 　 EonStor DS 3000 2U/12bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Port, 1xhost board slot(s), 2x4GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012GT0000F 　 High IOPS solution 　 EonStor DS 3000 2U/12bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Port, 1xhost board slot(s), 2x8GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012GTE000B 　 High IOPS solution 　 EonStor DS 3000 2U/12bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports + 1xhost board slot(s), 1x2GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012GTE000C 　 High IOPS solution 　 EonStor DS 3000 2U/12bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports + 1xhost board slot(s), 2x2GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012GTE000D 　 High IOPS solution 　 EonStor DS 3000 2U/12bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports + 1xhost board slot(s), 2x4GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012GTE000F 　 High IOPS solution 　 EonStor DS 3000 2U/12bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports + 1xhost board slot(s), 2x8GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012R00000B 　 　 　 EonStor DS 3000 2U/12bay, Dual Redundant controller subsystem including 1x6Gb SAS EXP. Port, 2xhost board slot(s), 2x2GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012R00000C 　 　 　 EonStor DS 3000 2U/12bay, Dual Redundant controller subsystem including 1x6Gb SAS EXP. Port, 2xhost board slots, 4x2GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012R00000D 　 　 　 EonStor DS 3000 2U/12bay, Dual Redundant controller subsystem including 1x6Gb SAS EXP. Port, 2xhost board slot(s), 4x4GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012R00000F 　 　 　 EonStor DS 3000 2U/12bay, Dual Redundant controller subsystem including 1x6Gb SAS EXP. Port, 2xhost board slot(s), 4x8GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
      DS3012R0E000B 　 　 　 EonStor DS 3000 2U/12bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2xhost board slot(s), 2x2GB, 2x(PSU+FAN Module), 2x(BBU+Flash module), 12xHDD trays and 1xRackmount kit
      DS3012R0E000C 　 　 　 EonStor DS 3000 2U/12bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2xhost board slot(s), 4x2GB, 2x(PSU+FAN Module), 2x(BBU+Flash module), 12xHDD trays and 1xRackmount kit
      DS3012R0E000D 　 　 　 EonStor DS 3000 2U/12bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2xhost board slot(s), 4x4GB, 2x(PSU+FAN Module), 2x(BBU+Flash module), 12xHDD trays and 1xRackmount kit
      DS3012R0E000F 　 　 　 EonStor DS 3000 2U/12bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2xhost board slot(s), 4x8GB, 2x(PSU+FAN Module), 2x(BBU+Flash module), 12xHDD trays and 1xRackmount kit
      DS3012RT0000B 　 High IOPS solution 　 EonStor DS 3000 2U/12bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 2xhost board slot(s), 2x2GB, 2x(PSU+FAN Module), 2x(BBU+Flash module), 12xHDD trays and 1xRackmount kit
      DS3012RT0000C 　 High IOPS solution 　 EonStor DS 3000 2U/12bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 2xhost board slot(s), 4x2GB, 2x(PSU+FAN Module), 2x(BBU+Flash module), 12xHDD trays and 1xRackmount kit
      DS3012RT0000D 　 High IOPS solution 　 EonStor DS 3000 2U/12bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 2xhost board slot(s), 4x4GB, 2x(PSU+FAN Module), 2x(BBU+Flash module), 12xHDD trays and 1xRackmount kit
      DS3012RT0000F 　 High IOPS solution 　 EonStor DS 3000 2U/12bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 2xhost board slot(s), 4x8GB, 2x(PSU+FAN Module), 2x(BBU+Flash module), 12xHDD trays and 1xRackmount kit
      DS3012RTE000B 　 High IOPS solution 　 EonStor DS 3000 2U/12bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2xhost board slot(s), 2x2GB, 2x(PSU+FAN Module), 2x(BBU+Flash module), 12xHDD trays and 1xRackmount kit
      DS3012RTE000C 　 High IOPS solution 　 EonStor DS 3000 2U/12bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2xhost board slot(s), 4x2GB, 2x(PSU+FAN Module), 2x(BBU+Flash module), 12xHDD trays and 1xRackmount kit
      DS3012RTE000D 　 High IOPS solution 　 EonStor DS 3000 2U/12bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2xhost board slot(s), 4x4GB, 2x(PSU+FAN Module), 2x(BBU+Flash module), 12xHDD trays and 1xRackmount kit
      DS3012RTE000F 　 High IOPS solution 　 EonStor DS 3000 2U/12bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2xhost board slot(s), 4x8GB, 2x(PSU+FAN Module), 2x(BBU+Flash module), 12xHDD trays and 1xRackmount kit
      Host board
      RER01G0HIO4-0010 　 　 　 EonStor / EonStor DS host board with 4 x 1Gb/s iSCSI ports
      RER10G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 10Gb/s iSCSI (RJ-45) ports
      RES10G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 10Gb/s iSCSI (SFP+) ports
      RFC08G0HIO4-0010 　 　 　 EonStor / EonStor DS host board with 4 x 8Gb/s FC ports
      RFC16G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 16Gb/s FC ports
      RSS06G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 6Gb/s SAS ports
      RSS12G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x12Gb/s SAS ports
      Hard Disk Drive/Solid State Drive/MUX Board
      9374CMUX3G-0010 　 　 　 MUX board for ESDS 3000(3.5" SATA drives)
      9AHMUX3G-0010 　 　 　 MUX board for ESDS 3000(2.5" SATA drives), ESDS 1000(3.5",2.5" SATA drives) and ESDS 2000(3.5",2.5" SATA drives)
      H1090XB1XX1-0030 　 　 　 HGST 2.5" SAS 6Gb/s HDD 900GB,10000RPM, 1 in 1 Packing
      H72A1XA3XX1-0030 　 　 　 SATA 6Gb/s HDD, 2TB, 7200RPM, 1 in 1 Packing
      H72A1XS2XX1-0030 　 　 　 Hitachi SAS 6Gb/s HDD, 2TB, 7200RPM, 1 in 1 Packing
      H72A2XA2XX1-0030 　 　 　 SATA 6Gb/s HDD, 3TB, 7200RPM, 1 in 1 Packing
      H72A2XS2XX1-0030 　 　 　 Hitachi SAS 6Gb/s HDD, 3TB, 7200RPM, 1 in 1 Packing
      H72A3XA3XX1-0030 　 　 　 Hitachi SATA 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing
      HELH72S2600-00301 　 　 　 HGST SAS 6Gb/s HDD, 6TB, 7200RPM, 1 in 1 Packing
      HELS15S2060-00301 　 　 　 Seagate SAS 6Gb/s HDD, 600GB, 15000RPM, 1 in 1 Packing
      HELS72A3500-00301 　 　 　 Seagate SATA 6Gb/s HDD, 5TB, 7200RPM, 1 in 1 Packing
      HELS72S2400-00301 　 　 　 Seagate SAS 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing
      HELT72S2400-00301 　 　 　 Toshiba SAS 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing
      HESESSS2020-00301 　 　 　 HGST(sTec) Enterprise 2.5" SAS MLC SSD 200GB, SSD, 1 in 1 Packing
      HESESSS2040-00301 　 　 　 HGST(sTec) Enterprise 2.5" SAS MLC SSD 400GB, SSD, 1 in 1 Packing
      HESESSS2080-00301 　 　 　 HGST(sTec) Enterprise 2.5" SAS MLC SSD 800GB, SSD, 1 in 1 Packing
      HESH10S2120-00301 　 　 　 HGST 2.5" SAS 6Gb/s HDD 1.2TB,10000RPM, 1 in 1 Packing
      HESTSSS3020-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 200GB, 1 in 1 Packing
      HESTSSS3040-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 400GB, 1 in 1 Packing.
      HESTSSS3080-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 800GB, 1 in 1 Packing.
      HESTSSS3160-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 1.6TB, 1 in 1 Packing.
      Data Service License
      SOFT-DRSDS-0010 　 　 　 EonStor DS Advanced Local Replication License (Snapshot and Volume Copy/Mirror)
      SOFT-REMDS-0010 　 　 　 EonStor DS Remote Replication License
      SOFT-SSDDS01-0010 　 　 　 EonStor DS SSD Cache License
      SOFT-TIERDS-0010 　 　 　 EonStor DS Automated Storage Tiering(2 tiers)
      SOFT-TIERDS01-0010 　 　 　 EonStor DS Advanced Automated Storage Tiering License(4 tiers)
      Expansion enclosure
      JB2012R00 　 　 　 2U/12bay Dual redundant controller JBOD including 2x 6Gb SAS ports, 2x(PSU+FAN module), 12xHDD trays and 1xRackmount kit
      JB2012S00 　 　 　 2U/12bay Single controller JBOD including 1x 6Gb SAS port, 2x(PSU+FAN module), 12xHDD trays and 1xRackmount kit
      JB2048G00 　 　 　 4U/48bay Single controller JBOD including 1x 6Gb SAS port, 3x(PSU+FAN module), 48xHDD trays and 1xRackmount kit
      JB2048R00 　 　 　 4U/48bay Dual redundant controller JBOD including 2x 6Gb SAS ports, 3x(PSU+FAN module), 48xHDD trays and 1xRackmount kit
      JB2060G00 　 　 　 4U/60bay Single controller JBOD including 1x 6Gb SAS port, 2x(PSU+FAN module), 60xHDD trays and 1xRackmount kit
      JB2060R00 　 　 　 4U/60bay Dual redundant controller JBOD including 2x 6Gb SAS ports, 2x(PSU+FAN module), 60xHDD trays and 1xRackmount kit
      Service & Warranty
      WTE2S12G-0010 　 　 　 1-year extended warranty for ES/ESDS S12x-G and ESDS 3012G models
      WTE2S12R-0010 　 　 　 1-year extended warranty for ES/ESDS S12x-R and ESDS 3012R models
      Cable/SFP Module
      9270CFCCab04-0010 　 Suggested item for 8Gb/16Gb FC and 10Gb iSCSI (SFP+)host 　 Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 1 Meter
      9270CFCCab05-0010 　 Suggested item for 8Gb/16Gb FC host and 10Gb iSCSI (SFP+)host 　 Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 5 Meters
      9270CFCCab06-0010 　 Suggested item for 8Gb/16Gb FC host and 10Gb iSCSI (SFP+)host 　 Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 10 Meters
      9270CmSASCab7-0030 　 　 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 50 Centimeters
      9270CmSASCab8-0030 　 　 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 120 Centimeters
      9270CmSASCab9-0030 　 　 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 260 Centimeters
      9370CmSASCab1-0030 　 　 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 50 Centimeters
      9370CmSASCab2-0030 　 　 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 120 Centimeters
      9370CmSASCab3-0030 　 　 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 260 Centimeters
      9370CSFP10G-0010 　 Suggested item for 10Gb iSCSI (SFP+) host 　 10G BASE-SR SFP+ Transceiver, LC, multi-mode
      9370CSFP16G-0010 　 Suggested item for 16Gb FC host 　 16Gb/s Fibre Channel SFP optical transceiver, LC, wave-length 850nm, multi-mode
      9370CSFP8G-0010 　 Suggested item for 8Gb FC host 　 Fibre Channel 8.5 / 4.25 / 2.125 GBd Small Form Pluggable Optical Transceiver, LC, wave-length 850nm, multi-mode
      9373ASCAB-0010 　 ESDS 3012G 　 RS-232C cable, DB9 to DB9
      9373AYCAB-0010 　 Default Included for ESDS 3012R 　 DB-9 Y-cable for dual-controller subsystems; maintenance-free during controller failover/failback
      HBA Card
      BH1EMF210-0010 　 　 　 HBA card,LPe12000, FC-8G, Single port,1 in 1 package
      BH1EMF211-0010 　 　 　 HBA card,LPe12002, FC-8G, Dual port,1 in 1 package
      BH1QGF210-0010 　 　 　 HBA card, QLE2562, FC-8G, Dual port, 1 in 1 package
      BH1QGF211-0010 　 　 　 HBA card, QLE2560, FC-8G, Single port, 1 in 1 package
      Controller module
      83SC30G12EMB-0010 　 　 　 Controller module w/2GB DDR-III & 1x host board slot for ESDS 3012GE subsystem
      83SC30G12EMC-0010 　 　 　 Controller module w/2x2GB DDR-III & 1x host board slot for ESDS 3012GE subsystem
      83SC30G12EMD-0010 　 　 　 Controller module w/2x4GB DDR-III & 1x host board slot for ESDS 3012GE subsystem
      83SC30G12EMF-0010 　 　 　 Controller module w/2x8GB DDR-III & 1x host board slot for ESDS 3012GE subsystem
      83SC30G12TEMB-0010 　 High IOPS solution 　 Controller module w/2GB DDR-III & 1x host board slot for ESDS 3012GTE subsystem
      83SC30G12TEMC-0010 　 High IOPS solution 　 Controller module w/2x2GB DDR-III & 1x host board slot for ESDS 3012GTE subsystem
      83SC30G12TEMD-0010 　 High IOPS solution 　 Controller module w/2x4GB DDR-III & 1x host board slotfor ESDS 3012GTE subsystem
      83SC30G12TEMF-0010 　 High IOPS solution 　 Controller module w/2x8GB DDR-III & 1x host board slotfor ESDS 3012GTE subsystem
      83SC30R12EMB-0010 　 　 　 Controller module w/2GB DDR-III & 1x host board slot for ESDS 3012RE subsystem
      83SC30R12EMC-0010 　 　 　 Controller module w/2x2GB DDR-III & 1x host board slot for ESDS 3012RE subsystem
      83SC30R12EMD-0010 　 　 　 Contoller module w/2x4GB DDR-III & 1x host board slot for ESDS 3012RE subsystem
      83SC30R12EMF-0010 　 　 　 Controller module w/2x8GB DDR-III & 1x host board slot for ESDS 3012RE subsystem
      83SC30R12TEMB-0010 　 High IOPS solution 　 Controller module w/2GB DDR-III & 1x host board slot for ESDS 3012RTE subsystem
      83SC30R12TEMC-0010 　 High IOPS solution 　 Controller module w/2x2GB DDR-III & 1x host board slot for ESDS 3012RTE subsystem
      83SC30R12TEMD-0010 　 High IOPS solution 　 Contoller module w/2x4GB DDR-III & 1x host board slot for ESDS 3012RTE subsystem
      83SC30R12TEMF-0010 　 High IOPS solution 　 Controller module w/2x8GB DDR-III & 1x host board slot for ESDS 3012RTE subsystem
      85SC30GH12MB-0010 　 　 　 Controller module w/2GB DDR-III & 1x host board slot for ESDS 3012G subsystem
      85SC30GH12MC-0010 　 　 　 Controller module w/2x2GB DDR-III & 1x host board slot for ESDS 3012G subsystem
      85SC30GH12MD-0010 　 　 　 Controller module w/2x4GB DDR-III & 1x host board slot for ESDS 3012G subsystem
      85SC30GH12MF-0010 　 　 　 Controller module w/2x8GB DDR-III & 1x host board slot for ESDS 3012G subsystem
      85SC30GI12MB-0010 　 High IOPS solution 　 Controller module w/2GB DDR-III & 1x host board slot for ESDS 3012GT subsystem
      85SC30GI12MC-0010 　 High IOPS solution 　 Controller module w/2x2GB DDR-III & 1x host board slot for ESDS 3012GT subsystem
      85SC30GI12MD-0010 　 High IOPS solution 　 Controller module w/2x4GB DDR-III & 1x host board slotfor ESDS 3012GT subsystem
      85SC30GI12MF-0010 　 High IOPS solution 　 Controller module w/2x8GB DDR-III & 1x host board slotfor ESDS 3012GT subsystem
      85SC30RH12MB-0010 　 　 　 Controller module w/2GB DDR-III & 1x host board slot for ESDS 3012R subsystem
      85SC30RH12MC-0010 　 　 　 Controller module w/2x2GB DDR-III & 1x host board slot for ESDS 3012R subsystem
      85SC30RH12MD-0010 　 　 　 Contoller module w/2x4GB DDR-III & 1x host board slot for ESDS 3012R subsystem
      85SC30RH12MF-0010 　 　 　 Controller module w/2x8GB DDR-III & 1x host board slot for ESDS 3012R subsystem
      85SC30RI12MB-0010 　 High IOPS solution 　 Controller module w/2GB DDR-III & 1x host board slot for ESDS 3012RT subsystem
      85SC30RI12MC-0010 　 High IOPS solution 　 Controller module w/2x2GB DDR-III & 1x host board slot for ESDS 3012RT subsystem
      85SC30RI12MD-0010 　 High IOPS solution 　 Contoller module w/2x4GB DDR-III & 1x host board slot for ESDS 3012RT subsystem
      85SC30RI12MF-0010 　 High IOPS solution 　 Controller module w/2x8GB DDR-III & 1x host board slot for ESDS 3012RT subsystem
      Other Accessories
      9373CPSU-0010 　 Default Included 　 Power supply unit w/FAN module for ES G6 /ESDS 2U-R/ESDS 3U/ESDS 3012/ESDS 3016 subsystems, 530W capacity
      9373CSlider36-0010 　 Default Included 　 Slide rail assembly, for ESVA family, ESDS family and ES G6 subsystems, 24"~36" rack depth
      9374CDTRAY-0030 　 Default Included 　 Hybrid tray for accommodating 2.5" or 3.5" hard disk drives
      9374CMUX3GTRP-0010 　 　 　 Hybrid tray w/pre-installed MUX board for accommodating 3.5" SATA hard disk drives in ESDS 3000 and EonNAS 3000
      9383CBBU-0010 　 For BBU replacement 　 Battery backup unit, Li-Ion, for ESDS 3000 and ESDS G7/G7i series, BBU ID
      9383CCBM-0010 　 Default Included for ESDS 3012R 　 Cache backup module, Li-lon, Flash, for ESDS 3000 and ESDS G7/G7i series, BBU ID
      9AHTRAYMUX3G-0010 　 　 　 Hybrid tray w/pre-installed MUX board for accommodating 2.5" SATA hard disk drives/SSD in ESDS 3000 and EonNAS 3000
      DDR3NNCMB2-0010 　 　 　 2GB DDR-III DIM module for ESDS 3000/1000/2000 series
      DDR3NNCMC4-0010 　 　 　 4GB DDR-III DIM module for ESDS G7i, ESDS 3000/1000/2000 and ESVA x75 subsystems
      DDR3NNCMD-0010 　 　 　 8GB DDR-III DIM module for ESDS G7i, ESDS 3000/1000/2000 and ESVA x75 subsystems

    • Data Service





      Thin provisioning

      Local Replication (Snapshot, Volume Copy/ Mirror)
      Automated Storage Tiering

      Remote Replication

  • ESDS 3012

  • High availability dual controller 2U 12-bay storage created for non-stop service in SMB and enterprise SAN/DAS applications. Tap fast performance, modular components, strong data integrity, friendly management, and fully-featured software bundles – all in one complete system.


    *We have multiple model variants available to suit your specific needs. For details, please refer to the datasheet.



ESDS 2024B
ESDS 3016

Comment
