  • ESDS 2000 series

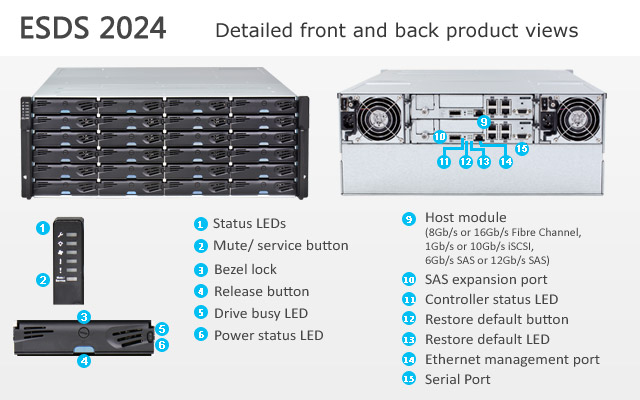

  • ESDS 2024

  • Powerful performance and extensive data services redefine entry-level RAID storage for SMBs and enterprises in a 4U 24-bay form factor. Advanced capabilities power up to 780K IOPS, with 5,500MB/s read throughput. Systems are easily scalable and available with single or dual controllers. They support hybrid hosts for SAN, IP SAN, and DAS utility on a fully-integrated platform. SSD optimization and performance-enhancement features include SSD Cache and automated storage tiering, with all services conveniently accessible from the intuitive SANWatch interface.





    Features Specifications Purchase Reference Related Information

    • Features

      		 　

      Benefits

      Up to 780K IOPS and 5,500 Mbps throughput

      		 　 Powerful computing power offers segment-leading storage performance to accelerate all applications, while larage storage throughput helps SMBs save tiem and increase effectiveness without having to spend beyond their means

      Hybrid host interface with optional onboard iSCSI

      		 　 Combine diverse connectivity environments on one system for greater utility

      Dual controllers and redundant power supplies

      		 　 Fast failover performance and high data availability

      Multiple host interface options

      		 　 Choose from up to 16Gb/s Fibre Channel, up to 10Gb/s iSCSI, or up to 12Gb/s SAS based on your needs and budget

      Up to 436 HDD support

      		 　 Expand storage to 2,616TB using a total 436 drives via JBOD enclosures.
      　 "Pay-as-you-grow" scalability, no worries for present budget or what you will need in the future

      SSD cache and tiering solutions

      		 　 SSD cache solution - up to 16X more read IOPS and 88% lower latency for the hottest data
      　 Automated tiering - leverage SSD speed and HDD capacity

      Intelligent Drive Recovery (IDR)

      		 　 Smarter media scan and effortless drive clone and replace

      Secure remote replication

      		 　 The backup to offsite locations provides very reliable and safe disaster recovery

      SED compatible

      		 　 Virtually unbreakable hardware encryption

      Tiered event messages

      		 　 Clear and easily actionable system notifications keep you informed and in control

      Thin provisioning

      		 　 Improve storage utilization up to 80% - get more for your investment

      Multi-target snapshot

      		 　 With up to 4096 targets, always have backups to recover vital data at different points in time

      Multi-pair volume copy/mirror

      		 　 Up to 64 pairs ensure entire volumes can be backed up with minimal effort as data grows

      SANWatch 3.0 interface

      		 　 User friendly browser-based deployment and management

      Intelligent drive spin-down and 80 PLUS power supplies

      		 　 Lower costs through reduced power draw and longer drive lifespan

      Super capacitor backup with flash module

      		 　 Deliver power and securely save cached data to flash modules during electric grid outages

    • Host Ports

      		 　 Onboard Gb/s ports
      　 Eight 1Gb/s iSCSI ports (4 per controller)
      　 More host options:
      　 Four 16Gb/s Fibre Channel ports (2 per controller)
      　 Eight 8Gb/s Fibre Channel ports (4 per controller)
      　 Four 10Gb/s iSCSi ports/ SFP+ or RJ-45 (2 per controller)
      　 Eight 1Gb/s iSCSI ports (4 per controller)
      　 Four 12Gb/s SAS ports (2 per controller)
      　 Four 6Gb/s SAS ports (2 per controller)

      Controller

      		 　 Dual redundant controllers

      Cache Memory

      		 　 Default 4GB (2x2GB), up to 8GB (4x2GB), 16GB (4x4GB) or 32GB (4x8GB)
      　 ** Default installed memory may vary by model, region, and other factors. Contact our sales representatives for details.

      Drive Connectivity

      		 　 6Gb/s SAS connectivity
      　 S.M.A.R.T. support
      　 Automatic bad-sector reassignment
      　 Dedicated bandwidth to each connected drive

      Supported Drives

      		 　 2.5" SAS SSDs
      　 2.5" SATA SSDs*
      　 2.5" 10,000RPM SAS drives
      　 3.5" 7,200 RPM Nearline SAS drives
      　 3.5" 7,200 RPM SATA drives*
      　 *MUX board required when using SATA drives
      　 ** For the latest compatibility details, please refer to the Compatibility Matrix.

      Maximum Number of Drives

      		 　 Per system: 24
      　 Via JBOD: 324

      Corresponding Expansion Enclosure

      		 　 Please refer to datasheet

      Rack Support

      		 　 4U, 19-inch rackmount

      RAID Functionality

      		 　 Global, dedicated or enclosure hot-spare
      　 RAID levels supported : RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60
      　 Online expansion by:
      　 Adding new drives
      　 Copying and replacing drives with drives of larger capacity
      　 RAID migration
      　 Configurable stripe size and write policy per system
      　 Intelligent drive handling
      　  In degraded mode: skips irreparable blocks to continue rebuild
      　  In normal operation: data-block verification and repair

      Data Services

      		 　 Thin provisioning
      　 SSD Cache*
      　 SED (Self-encrypting drives)
      　 Automated storage tiering*
      　 Local replication**
      　 Snapshot
      　 Volume copy/ mirror
      　 Remote replication*
      　 Synchronous or asynchronous
      　 * Optional
      　 ** Available with Standard license and optional Advanced license

      Green Design

      		 　 High-efficiency power supplies
      　 Intelligent multi-level drive spin-down

      Availability and Reliability

      		 　 Redundant, hot-swappable hardware modules
      　 CacheSafe technology
      　 Multi-pathing support (EonPath)
      　 Device mapper support

      Notification

      		 　 Various event notification methods including email, LAN broadcast, fax, SNMP trap and SMS.

      Management

      		 　 Web-based SANWatch management software
      　 RS232 serial port for local access to firmware-embedded utility
      　 Automated cache flush and caching mode operation per enclosure status
      　 Telnet and SSH system monitoring via Ethernet
      　 Platform-independent firmware management GUI
      　 Module status LED indicators: component presence detection & thermal sensors via I2C bus

      Service and Support

      		 　 Standard service: 3-year limited hardware/software warranty and 8x5 phone, web, and email support
      　 ​Upgrade/Extension service*: replacement part dispatch on the next business day (up to 5 years)
      　 Advanced Service: 24x7 phone, web and email support + onsite diagnostics on the next business day
      　 ​Premium Service: 24x7 phone, web and email support + onsite diagnostics in 4 hours
      　 * Optional
      　 ** Service may vary by region

      Power

      		 　 Power supplies: Two 460W
      　 AC voltage: 100VAC @ 8A to 240VAC @ 4A with PFC (auto-switching)
      　 Frequency: 50-60 Hz

      Environmental

      		 　 Temperature:
      　 Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
      　 Non-operating: -40 to 60°
      　 Altitude: Sea level to 3660m (12,000ft) operating / sea level to 12,192m (40,000ft) non-operating
      　 Relative humidity: 5 to 95% non-condensing, operating and non-operating

      Regulatory

      		 　 Safty: UL, BSMI, CB, EAC
      　 Electromangnetic Campatibility: CE, BSMI, FCC, KC

      Dimensions

      		 　 448mm (W) x 175mm (H) x 500mm (D)
      　 **Without chassis ears / protrusions

      Weight

      		 　 27.44kg/ 60.49lbs (without HDDs)

      Package Dimensions

      		 　 780mm (W) x 465mm (H) x 588mm (D)

    • The “Purchase Reference” feature enables customers to request a quote from Infortrend sales representatives. Please note that actual product orders and purchases are not processed via Infortrend's website. If you wish to order and purchase Infortrend products, please contact our sales representatives directly.

      Please note the following:

      1. The list below is based on standard worldwide shipment, models may vary by region. Infortrend sales representatives can provide more information about shipment variations in your region.
      2. “Default Included” means that a component is standard included in system orders. Customers may order additional units to serve as spare components.
      System
      DS2024G00000B 　 EonStor DS 2000 4U/24bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports +1x host board slot(s), 1x2GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
      DS2024G00000C 　 EonStor DS 2000 4U/24bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports +1x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
      DS2024G00000D 　 EonStor DS 2000 4U/24bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports +1x host board slot(s), 2x4GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
      DS2024G00000F 　 EonStor DS 2000 4U/24bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports +1x host board slot(s), 2x8GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
      DS2024R0C000B 　 EonStor DS 2000 4U/24bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
      DS2024R0C000C 　 EonStor DS 2000 4U/24bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x2GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
      DS2024R0C000D 　 EonStor DS 2000 4U/24bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x4GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
      DS2024R0C000F 　 EonStor DS 2000 4U/24bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x8GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
      Host Board
      RER01G0HIO4-0010 　 EonStor / EonStor DS host board with 4 x 1Gb/s iSCSI ports
      RER10G0HIO2-0010 　 EonStor / EonStor DS host board with 2 x 10Gb/s iSCSI (RJ-45) ports
      RES10G0HIO2-0010 　 EonStor / EonStor DS host board with 2 x 10Gb/s iSCSI (SFP+) ports
      RFC08G0HIO4-0010 　 EonStor / EonStor DS host board with 4 x 8Gb/s FC ports
      RFC16G0HIO2-0010 　 EonStor / EonStor DS host board with 2 x 16Gb/s FC ports
      RSS06G0HIO2-0010 　 EonStor / EonStor DS host board with 2 x 6Gb/s SAS ports
      RSS12G0HIO2-0010 　 EonStor / EonStor DS host board with 2 x12Gb/s SAS ports
      Hard Disk Drive/Solid State Drive/MUX Board
      9AHMUX3G-0010 　 MUX board for DS 3000(2.5" SATA drives), DS 1000(3.5",2.5" SATA drives), DS 2000(3.5",2.5" SATA drives) and DS 4000(3.5",2.5" SATA drives)
      H1090XB1XX1-0030 　 HGST 2.5" SAS 6Gb/s HDD 900GB,10000RPM, 1 in 1 Packing
      H72A1XA3XX-0030 　 SATA 6Gb/s HDD, 2TB, 7200RPM, 1 in 1 Packing
      H72A1XS2XX1-0030 　 Hitachi SAS 6Gb/s HDD, 2TB, 7200RPM, 1 in 1 Packing
      H72A2XA2XX-0030 　 SATA 6Gb/s HDD, 3TB, 7200RPM, 1 in 1 Packing
      H72A2XS2XX1-0030 　 Hitachi SAS 6Gb/s HDD, 3TB, 7200RPM, 1 in 1 Packing
      H72A3XA3XX1-0030 　 Hitachi SATA 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing
      HELH72A3600-00301 R model excluded HGST Enterprise 3.5" SATA 6Gb/s HDD, 6TB, 7200RPM, 1 in 1 Packing
      HELH72S2400-00301 　 HGST 3.5" SAS 6Gb/s HDD 4TB, 7200RPM, 1 in 1 Packing
      HELH72S2600-00301 　 HGST SAS 6Gb/s HDD, 6TB, 7200RPM, 1 in 1 Packing
      HELH72S3600-00301 　 HGST Enterprise 3.5" SAS 12Gb/s HDD, 6TB, 7200RPM, 1 in 1 Packing.
      HELH72S3800-00301 　 HGST Enterprise 3.5" SAS 12Gb/s HDD, 8TB, 7200RPM, 1 in 1 Packing.
      HELS72A3200-00301 　 Seagate 3.5" SATA 6Gb/s HDD 2TB, 7200RPM, 1 in 1 Packing
      HELS72A3300-00301 　 Seagate 3.5" SATA 6Gb/s HDD 3TB, 7200RPM, 1 in 1 Packing
      HELS72A3400-00301 　 Seagate 3.5" SATA 6Gb/s HDD 4TB, 7200RPM, 1 in 1 Packing
      HELS72A3500-00301 　 Seagate SATA 6Gb/s HDD, 5TB, 7200RPM, 1 in 1 Packing
      HELS72A3600-00301 　 Seagate Enterprise 3.5" SATA 6Gb/s HDD 6TB, 7200RPM, 1 in 1 Packing
      HELS72S2200-00301 　 Seagate 3.5" SAS 6Gb/s HDD 2TB, 7200RPM, 1 in 1 Packing
      HELS72S2300-00301 　 Seagate 3.5" SAS 6Gb/s HDD 3TB, 7200RPM, 1 in 1 Packing
      HELS72S2400-00301 　 Seagate SAS 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing
      HELT72S2400-00301 　 Toshiba SAS 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing
      HESH10S3120-00301 　 HGST Enterprise 2.5" SAS 12Gb/s HDD, 1.2TB, 10000RPM, 1 in 1 Packing.
      HESH10S3180-00301 　 HGST Enterprise 2.5" SAS 12Gb/s HDD, 1.8TB, 10000RPM, 1 in 1 Packing.
      HESH15S3030-00301 　 HGST Enterprise 2.5" SAS 12Gb/s HDD, 300GB, 15000RPM, 1 in 1 Packing.
      HESH15S3060-00301 　 HGST Enterprise 2.5" SAS 12Gb/s HDD, 600GB, 15000RPM, 1 in 1 Packing.
      HEST10S2030-00301 　 Toshiba 2.5" SAS 6Gb/s HDD 300GB, 10000RPM, 1 in 1 Packing
      HEST10S2060-00301 　 Toshiba 2.5" SAS 6Gb/s HDD 600GB, 10000RPM, 1 in 1 Packing
      HESTSSS3020-00301 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 200GB, 1 in 1 Packing
      HESTSSS3040-00301 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 400GB, 1 in 1 Packing.
      HESTSSS3080-00301 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 800GB, 1 in 1 Packing.
      HESTSSS3160-00301 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 1.6TB, 1 in 1 Packing.
      HFLS72S2400-00301 　 Seagate Enterprise (SED) 3.5" SAS 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing.
      HNSNSSA3016-00301 　 Intel Entry 2.5" SATA 6Gb/s MLC SSD (Total 100TB write), 160GB, 1 in 1 Packing.
      HNSNSSA3048-00301 　 Intel Entry 2.5" SATA 6Gb/s MLC SSD (Total 275TB write), 480GB, 1 in 1 Packing.
      HNSNSSA3060-00301 　 Intel Entry 2.5" SATA 6Gb/s MLC SSD (Total 330TB write), 600GB, 1 in 1 Packing.
      HNSNSSA3080-00301 　 Intel Entry 2.5" SATA 6Gb/s MLC SSD (Total 450TB write), 800GB, 1 in 1 Packing.
      HSLT72A3200-00301 　 Toshiba Surveillance 3.5" SATA 6Gb/s HDD 2TB, 7200RPM, 3-year warranty, 1 in 1 Packing
      HSLT72A3300-00301 　 Toshiba Surveillance 3.5" SATA 6Gb/s HDD 3TB, 7200RPM, 3-year warranty, 1 in 1 Packing
      HSLT72A3400-00301 　 Toshiba Surveillance 3.5" SATA 6Gb/s HDD 4TB, 7200RPM, 3-year warranty, 1 in 1 Packing
      Data Service License
      SOFT-DRSDS-0010 　 EonStor DS Advanced Local Replication License (Snapshot and Volume Copy/Mirror)
      SOFT-REMDS-0010 　 EonStor DS Remote Replication License
      SOFT-SSDDS01-0010 　 EonStor DS SSD Cache License
      SOFT-TIERDS-0010 　 EonStor DS Automated Storage Tiering(2 tiers)
      SOFT-TIERDS01-0010 　 EonStor DS Advanced Automated Storage Tiering License(4 tiers)
      Expansion Enclosure
      JB2016G01 For DS 2024G 3U/16bay Single controller JBOD including 1x 6Gb SAS port, 2x(PSU+FAN module), 16xHDD trays and 1xRackmount kit
      JB2016R01 For DS 2024R 3U/16bay Dual redundant controller JBOD including 2x 6Gb SAS port, 2x(PSU+FAN module), 12xHDD trays and 1xRackmount kit
      JB2048G00 For DS 2024G 4U/48bay Single controller JBOD including 1x 6Gb SAS port, 3x(PSU+FAN module), 48xHDD trays and 1xRackmount kit
      JB2048R00 For DS 2024R 4U/48bay Dual redundant controller JBOD including 2x 6Gb SAS port, 3x(PSU+FAN module), 48xHDD trays and 1xRackmount kit
      JB2060G00 For DS 2024G 4U/60bay Single controller JBOD including 1x 6Gb SAS port, 2x(PSU+FAN module), 60xHDD trays and 1xRackmount kit
      JB2060R00 For DS 2024R 4U/60bay Dual redundant controller JBOD including 2x 6Gb SAS port, 2x(PSU+FAN module), 60xHDD trays and 1xRackmount kit
      Service & Warranty
      WTE2DS1024G-0010 　 1-year extended warranty license for ESDS 1024G/2024G models
      WTE2DS1024R-0010 　 1-year extended warranty license for ESDS 1024R/2024R models
      Cable/SFP Module
      9270CFCCab04-0010 Suggested item for 8Gb/16Gb FC and 10Gb iSCSI (SFP+)host Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 1 Meter
      9270CFCCab05-0010 Suggested item for 8Gb/16Gb FC host and 10Gb iSCSI (SFP+)host Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 5 Meters
      9270CFCCab06-0010 Suggested item for 8Gb/16Gb FC host and 10Gb iSCSI (SFP+)host Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 10 Meters
      9270CmSASCab7-0030 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 50 Centimeters
      9270CmSASCab8-0030 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 120 Centimeters
      9270CmSASCab9-0030 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 260 Centimeters
      9370CmSASCab1-0030 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 50 Centimeters
      9370CmSASCab2-0030 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 120 Centimeters
      9370CmSASCab3-0030 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 260 Centimeters
      9370CSFP10G-0010 Suggested item for 10Gb iSCSI (SFP+) host 10G BASE-SR SFP+ Transceiver, LC, multi-mode
      9370CSFP16G-0010 Suggested item for 16Gb FC host 16Gb/s Fibre Channel SFP optical transceiver, LC, wave-length 850nm, multi-mode
      9370CSFP8G-0010 Suggested item for 8Gb FC host Fibre Channel 8.5 / 4.25 / 2.125 GBd Small Form Pluggable Optical Transceiver, LC, wave-length 850nm, multi-mode
      9373ASCAB-0010 DS 2024G RS-232C cable, DB9 to DB9
      9373AYCAB-0010 Default Included for ESDS 2024R DB-9 Y-cable for dual-controller subsystems; maintenance-free during controller failover/failback
      HBA Card
      BH1EMF210-0010 　 HBA card,LPe12000, FC-8G, Single port,1 in 1 package
      BH1EMF211-0010 　 HBA card, LPe12002, FC-8G, Dual ports, 1 in 1 package
      BH1EMF310-0010 　 HBA card, LPe16000B, FC-16G, Single port, 1 in 1 package
      BH1EMF311-0010 　 HBA card, LPe16002B, FC-16G, Dual ports, 1 in 1 package
      BH1LSS210-0010 　 HBA card, LSI SAS9200-8E, SAS 6G, PCI-e 2.0, Dual port (SFF8088), 1 in 1 package, 3-year warranty
      BH1QGF210-0010 　 HBA card, QLE2562, FC-8G, Dual port, 1 in 1 package
      BH1QGF211-0010 　 HBA card, QLE2560, FC-8G, Single port, 1 in 1 package
      BH1QGF310-0010 　 HBA card, QLE2670, FC-16G, Single port, 1 in 1 package
      BH1QGF311-0010 　 HBA card, QLE2672, FC-16G, Dual port, 1 in 1 package
      BH4LSS210-0010 　 HBA card, LSI SAS 9207-8e, SAS 6G, PCI-e 3.0, Dual port (SFF8088), 1 in 1 package, 3-year warranty
      BH4LSS310-0010 　 HBA card, LSI SAS9300-8E, SAS 12G, PCI-e 3.0, Dual port (SFF8644), 1 in 1 package, 3-year warranty
      Controller Module
      84SC20G24MB-0010 　 Controller module w/2GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2024G subsystem
      84SC20G24MC-0010 　 Controller module w/4GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2024G subsystem
      84SC20G24MD-0010 　 Controller module w/8GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2024G subsystem
      84SC20G24MF-0010 　 Controller module w/16GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2024G subsystem
      84SC20R24CMB-0010 　 Controller module w/2GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2024RC subsystem
      84SC20R24CMC-0010 　 Controller module w/4GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2024RC subsystem
      84SC20R24CMD-0010 　 Controller module w/8GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2024RC subsystem
      84SC20R24CMF-0010 　 Controller module w/16GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2024RC subsystem
      Other Accessories
      9571CDTRAY-0030 Default Included Hybrid tray to accommodating 2.5" or 3.5" hard disk drives for ESDS 1000, ESDS 2000 and JB2000-1
      9571CEAR-0010 Default Included (China Only) Rack ear assembly, for ESDS 1000/2000/4000 subsystems, 19" rack depth
      9571CPSU-0010 Default Included Power supply unit w/FAN module for ESDS 1000,ESDS 2000 and JB 2000-1 subsystems, 460W capacity
      9571CSLIDER-0010 Default Included (China Excluded) Slide rail assembly, for ESDS 1000/2000/4000 subsystems, 23"~37" rack depth
      9571SCBM-0010 Default Included for DS2024R(by region) Cache backup module, Super capacitor , Flash, for ESDS 1000 and ESDS 2000
      9571SCBU-0010 For Super Cap replacement Capacitor backup unit, Super capacitor, for ESDS 1000 and ESDS 2000
      DDR3NNCMB2-0010 　 2GB DDR-III DIM module for EonStor DS, EonNAS and ESVA subsystem
      DDR3NNCMC4-0010 　 4GB DDR-III DIM module for EonStor DS, EonNAS and ESVA subsystem
      DDR3NNCMD-0010 　 8GB DDR-III DIM module for EonStor DS, EonNAS and ESVA subsystem
    • Data Service







      Thin provisioning

      Local Replication (Snapshot, Volume Copy/ Mirror)
      Automated Storage Tiering

      Remote Replication



  • ESDS 2024

  • Powerful performance and extensive data services redefine entry-level RAID storage for SMBs and enterprises in a 4U 24-bay form factor. Advanced capabilities power up to 780K IOPS, with 5,500MB/s read throughput. Systems are easily scalable and available with single or dual controllers. They support hybrid hosts for SAN, IP SAN, and DAS utility on a fully-integrated platform. SSD optimization and performance-enhancement features include SSD Cache and automated storage tiering, with all services conveniently accessible from the intuitive SANWatch interface.





ESDS 2016
ESDS 2024B

Comment
