HOME > 제품소개 > > ESDS 2000 series

  • ESDS 2000 series

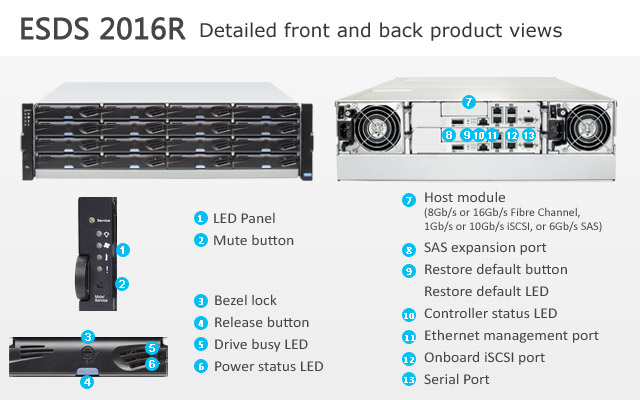

  • ESDS 2016

  • This 3U 16-bay system is offered with single or dual controller configurations and boasts a convenient modular hardware design. Access to all components is easy, helping streamline maintenance and upgrades. To ensure energy savings, systems ship with redundant 80 PLUS power supplies.




    Features Specifications Purchase Reference Related Information

    • Product advantages





      Great value storage solution for SMBs that delivers outstanding IOPS

      • High performance to accommodate more IOPS-intensive applications at SMBs, such as databases, VDI, Microsoft Exchange, and file servers


      Rich data services plus SSD cache, automated storage tiering, and remote replication support

      • SSD Cache boosts read IOPS and reduces cache response time
      • Automated storage tiering makes the most of SSD speed and spin drive capacity
      • Remote replication backs up data to offsite locations for reliable disaster recovery
      • 64 replication pair volume mirror/copy (upgradable to 256)
      • Includes licenses for snapshot, volume copy/mirror, and thin provisioning
      • Thin provisioning increases storage utilization to 80%
      • 128-target snapshot included (upgradable to 4096 targets)
      • Compatible with self-encrypting drives (SED) to deliver unbreakable data security plus fast and complete deletion


      Data protection solutions

      • Super capacitors with flash module to keep data saved in cache live and accessible during power outages and other disruptions
      • Cached data remains powered for extended periods of time to ensure recovery even after prolonged outages

      Customizable and scalable

      • Systems tailored to your budget plans and expand conveniently when more capacity is needed
      • Compatible with a range of Infortrend JBOD expansion enclosures, including high density 4U 60-bay units
      • Up to 316 disk drives per system, with support for 6TB drives – nearly 2PB in total capacity


      Easy to use

      • Exclusive SANWatch 3.0 browser-based GUI features an intuitive and simple design
      • User interface integrates all major system functions


      Green design

        • Energy efficient components include SoC processor and 80 PLUS power supplies
        • Intelligent drive and fan spin-down moderate energy consumption

        Features

        　

        Benefits

        Up to 780K IOPS and 5,500 Mbps throughput 　 Powerful computing power offers segment-leading storage performance to accelerate all applications, while larage storage throughput helps SMBs save tiem and increase effectiveness without having to spend beyond their means
        Dual controllers and redundant power supplies  　 Fast failover performance and high data availability
        Scalability 　 Expand storage to 1,896TB using a total 316 drives via JBOD enclosures
        Hybrid host interface with optional onboard iSCSI  　 Combine diverse connectivity environments on one system for greater utility
        Multiple host interface options 　 Choose 8Gb/s or 16Gb/s Fibre Channel, 1Gb/s or 10Gb/s iSCSI, or 6Gb/s or 12Gb/s SAS based on your needs and budget
        Automated storage tiering 　 Using SSD, accelerate performance up to three times compared to all-spin storage
        Secure remote replication 　 The backup to offsite locations provides very reliable and safe disaster recovery
        Tiered event messages 　 Clear and easily actionable system notifications keep you informed and in control
        Smart media scan 　 Works in the background to enhance data integrity and prevent corruption
        Thin provisioning 　 Improve storage utilization up to 80% - get more for your investment
        Multi-target snapshot 　 With up to 4096 targets, always have backups to recover vital data at different points in time
        Multi-pair volume copy/mirror  　 Up to 64 pairs ensure entire volumes can be backed up with minimal effort as data grows
        SANWatch 3.0 interface 　 User friendly browser-based deployment and management
        Intelligent drive spin-down and 80 PLUS power supplies  　 Lower costs through reduced power draw and longer drive lifespan

      • Host Ports

        		 　 Onboard Gb/s ports
        　 Eight 1Gb/s iSCSI ports (4 per controller)
        　 More host options:
        　 Four 16Gb/s Fibre Channel ports (2 per controller)
        　 Eight 8Gb/s Fibre Channel ports (4 per controller)
        　 Four 10Gb/s iSCSi ports/ SFP+ or RJ-45 (2 per controller)
        　 Eight 1Gb/s iSCSI ports (4 per controller)
        　 Four 12Gb/s SAS ports (2 per controller)
        　 Four 6Gb/s SAS ports (2 per controller)

        Controller

        		 　 Dual redundant controllers

        Cache Memory

        		 　 Default 4GB (2x2GB), up to 8GB (4x2GB), 16GB (4x4GB) or 32GB (4x8GB)
        　 ** Default installed memory may vary by model, region, and other factors. Contact our sales representatives for details.

        Drive Connectivity

        		 　 6Gb/s SAS connectivity
        　 S.M.A.R.T. support
        　 Automatic bad-sector reassignment
        　 Dedicated bandwidth to each connected drive

        Supported Drives

        		 　 2.5" SAS SSDs
        　 2.5" SATA SSDs*
        　 2.5" 10,000RPM SAS drives
        　 3.5" 7,200 RPM Nearline SAS drives
        　 3.5" 7,200 RPM SATA drives*
        　 *MUX board required when using SATA drives
        　 ** For the latest compatibility details, please refer to the Compatibility Matrix.

        Maximum Number of Drives

        		 　 Per system: 24
        　 Via JBOD: 324

        Corresponding Expansion Enclosure

        		 　 Please refer to datasheet

        Rack Support

        		 　 4U, 19-inch rackmount

        RAID Functionality

        		 　 Global, dedicated or enclosure hot-spare
        　 RAID levels supported : RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60
        　 Online expansion by:
        　 Adding new drives
        　 Copying and replacing drives with drives of larger capacity
        　 RAID migration
        　 Configurable stripe size and write policy per system
        　 Intelligent drive handling
        　  In degraded mode: skips irreparable blocks to continue rebuild
        　  In normal operation: data-block verification and repair

        Data Services

        		 　 Thin provisioning
        　 SSD Cache*
        　 SED (Self-encrypting drives)
        　 Automated storage tiering*
        　 Local replication**
        　 Snapshot
        　 Volume copy/ mirror
        　 Remote replication*
        　 Synchronous or asynchronous
        　 * Optional
        　 ** Available with Standard license and optional Advanced license

        Green Design

        		 　 High-efficiency power supplies
        　 Intelligent multi-level drive spin-down

        Availability and Reliability

        		 　 Redundant, hot-swappable hardware modules
        　 CacheSafe technology
        　 Multi-pathing support (EonPath)
        　 Device mapper support

        Notification

        		 　 Various event notification methods including email, LAN broadcast, fax, SNMP trap and SMS.

        Management

        		 　 Web-based SANWatch management software
        　 RS232 serial port for local access to firmware-embedded utility
        　 Automated cache flush and caching mode operation per enclosure status
        　 Telnet and SSH system monitoring via Ethernet
        　 Platform-independent firmware management GUI
        　 Module status LED indicators: component presence detection & thermal sensors via I2C bus

        Service and Support

        		 　 Standard service: 2-year limited hardware/software warranty and 8x5 phone, web, and email support
        　 ​Upgrade/Extension service*: replacement part dispatch on the next business day (up to 5 years)
        　 Advanced Service: 24x7 phone, web and email support + onsite diagnostics on the next business day
        　 ​Premium Service: 24x7 phone, web and email support + onsite diagnostics in 4 hours
        　 * Optional
        　 ** Service may vary by region

        Power

        		 　 Power supplies: Two 460W
        　 AC voltage: 100VAC @ 8A to 240VAC @ 4A with PFC (auto-switching)
        　 Frequency: 50-60 Hz

        Environmental

        		 　 Temperature:
        　 Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
        　 Non-operating: -40 to 60°
        　 Altitude: Sea level to 3660m (12,000ft) operating / sea level to 12,192m (40,000ft) non-operating
        　 Relative humidity: 5 to 95% non-condensing, operating and non-operating

        Regulatory

        		 　 Safty: UL, BSMI, CB, EAC
        　 Electromangnetic Campatibility: CE, BSMI, FCC, KC

        Dimensions

        		 　 448mm (W) x 175mm (H) x 500mm (D)
        　 **Without chassis ears / protrusions

        Weight

        		 　 27.44kg/ 60.49lbs (without HDDs)

        Package Dimensions

        		 　 780mm (W) x 465mm (H) x 588mm (D)

      • The “Purchase Reference” feature enables customers to request a quote from Infortrend sales representatives. Please note that actual product orders and purchases are not processed via Infortrend's website. If you wish to order and purchase Infortrend products, please contact our sales representatives directly.

        Please note the following:

        1. The list below is based on standard worldwide shipment, models may vary by region. Infortrend sales representatives can provide more information about shipment variations in your region.
        2. “Default Included” means that a component is standard included in system orders. Customers may order additional units to serve as spare components.
        System
        DS2024G00000B 　 　 　 EonStor DS 2000 4U/24bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports +1x host board slot(s), 1x2GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
        DS2024G00000C 　 　 　 EonStor DS 2000 4U/24bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports +1x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
        DS2024G00000D 　 　 　 EonStor DS 2000 4U/24bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports +1x host board slot(s), 2x4GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
        DS2024G00000F 　 　 　 EonStor DS 2000 4U/24bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports +1x host board slot(s), 2x8GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
        DS2024R0C000B 　 　 　 EonStor DS 2000 4U/24bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
        DS2024R0C000C 　 　 　 EonStor DS 2000 4U/24bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x2GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
        DS2024R0C000D 　 　 　 EonStor DS 2000 4U/24bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x4GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
        DS2024R0C000F 　 　 　 EonStor DS 2000 4U/24bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x8GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
        Host Board
        RER01G0HIO4-0010 　 　 　 EonStor / EonStor DS host board with 4 x 1Gb/s iSCSI ports
        RER10G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 10Gb/s iSCSI (RJ-45) ports
        RES10G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 10Gb/s iSCSI (SFP+) ports
        RFC08G0HIO4-0010 　 　 　 EonStor / EonStor DS host board with 4 x 8Gb/s FC ports
        RFC16G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 16Gb/s FC ports
        RSS06G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 6Gb/s SAS ports
        RSS12G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x12Gb/s SAS ports
        Hard Disk Drive/Solid State Drive/MUX Board
        9AHMUX3G-0010 　 　 　 MUX board for DS 3000(2.5" SATA drives), DS 1000(3.5",2.5" SATA drives), DS 2000(3.5",2.5" SATA drives) and DS 4000(3.5",2.5" SATA drives)
        H1090XB1XX1-0030 　 　 　 HGST 2.5" SAS 6Gb/s HDD 900GB,10000RPM, 1 in 1 Packing
        H72A1XA3XX-0030 　 　 　 SATA 6Gb/s HDD, 2TB, 7200RPM, 1 in 1 Packing
        H72A1XS2XX1-0030 　 　 　 Hitachi SAS 6Gb/s HDD, 2TB, 7200RPM, 1 in 1 Packing
        H72A2XA2XX-0030 　 　 　 SATA 6Gb/s HDD, 3TB, 7200RPM, 1 in 1 Packing
        H72A2XS2XX1-0030 　 　 　 Hitachi SAS 6Gb/s HDD, 3TB, 7200RPM, 1 in 1 Packing
        H72A3XA3XX1-0030 　 　 　 Hitachi SATA 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing
        HELH72A3600-00301 　 R model excluded 　 HGST Enterprise 3.5" SATA 6Gb/s HDD, 6TB, 7200RPM, 1 in 1 Packing
        HELH72S2400-00301 　 　 　 HGST 3.5" SAS 6Gb/s HDD 4TB, 7200RPM, 1 in 1 Packing
        HELH72S2600-00301 　 　 　 HGST SAS 6Gb/s HDD, 6TB, 7200RPM, 1 in 1 Packing
        HELH72S3600-00301 　 　 　 HGST Enterprise 3.5" SAS 12Gb/s HDD, 6TB, 7200RPM, 1 in 1 Packing.
        HELH72S3800-00301 　 　 　 HGST Enterprise 3.5" SAS 12Gb/s HDD, 8TB, 7200RPM, 1 in 1 Packing.
        HELS72A3200-00301 　 　 　 Seagate 3.5" SATA 6Gb/s HDD 2TB, 7200RPM, 1 in 1 Packing
        HELS72A3300-00301 　 　 　 Seagate 3.5" SATA 6Gb/s HDD 3TB, 7200RPM, 1 in 1 Packing
        HELS72A3400-00301 　 　 　 Seagate 3.5" SATA 6Gb/s HDD 4TB, 7200RPM, 1 in 1 Packing
        HELS72A3500-00301 　 　 　 Seagate SATA 6Gb/s HDD, 5TB, 7200RPM, 1 in 1 Packing
        HELS72A3600-00301 　 　 　 Seagate Enterprise 3.5" SATA 6Gb/s HDD 6TB, 7200RPM, 1 in 1 Packing
        HELS72S2200-00301 　 　 　 Seagate 3.5" SAS 6Gb/s HDD 2TB, 7200RPM, 1 in 1 Packing
        HELS72S2300-00301 　 　 　 Seagate 3.5" SAS 6Gb/s HDD 3TB, 7200RPM, 1 in 1 Packing
        HELS72S2400-00301 　 　 　 Seagate SAS 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing
        HELT72S2400-00301 　 　 　 Toshiba SAS 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing
        HESH10S3120-00301 　 　 　 HGST Enterprise 2.5" SAS 12Gb/s HDD, 1.2TB, 10000RPM, 1 in 1 Packing.
        HESH10S3180-00301 　 　 　 HGST Enterprise 2.5" SAS 12Gb/s HDD, 1.8TB, 10000RPM, 1 in 1 Packing.
        HESH15S3030-00301 　 　 　 HGST Enterprise 2.5" SAS 12Gb/s HDD, 300GB, 15000RPM, 1 in 1 Packing.
        HESH15S3060-00301 　 　 　 HGST Enterprise 2.5" SAS 12Gb/s HDD, 600GB, 15000RPM, 1 in 1 Packing.
        HEST10S2030-00301 　 　 　 Toshiba 2.5" SAS 6Gb/s HDD 300GB, 10000RPM, 1 in 1 Packing
        HEST10S2060-00301 　 　 　 Toshiba 2.5" SAS 6Gb/s HDD 600GB, 10000RPM, 1 in 1 Packing
        HESTSSS3020-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 200GB, 1 in 1 Packing
        HESTSSS3040-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 400GB, 1 in 1 Packing.
        HESTSSS3080-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 800GB, 1 in 1 Packing.
        HESTSSS3160-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 1.6TB, 1 in 1 Packing.
        HFLS72S2400-00301 　 　 　 Seagate Enterprise (SED) 3.5" SAS 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing.
        HNSNSSA3016-00301 　 　 　 Intel Entry 2.5" SATA 6Gb/s MLC SSD (Total 100TB write), 160GB, 1 in 1 Packing.
        HNSNSSA3048-00301 　 　 　 Intel Entry 2.5" SATA 6Gb/s MLC SSD (Total 275TB write), 480GB, 1 in 1 Packing.
        HNSNSSA3060-00301 　 　 　 Intel Entry 2.5" SATA 6Gb/s MLC SSD (Total 330TB write), 600GB, 1 in 1 Packing.
        HNSNSSA3080-00301 　 　 　 Intel Entry 2.5" SATA 6Gb/s MLC SSD (Total 450TB write), 800GB, 1 in 1 Packing.
        HSLT72A3200-00301 　 　 　 Toshiba Surveillance 3.5" SATA 6Gb/s HDD 2TB, 7200RPM, 3-year warranty, 1 in 1 Packing
        HSLT72A3300-00301 　 　 　 Toshiba Surveillance 3.5" SATA 6Gb/s HDD 3TB, 7200RPM, 3-year warranty, 1 in 1 Packing
        HSLT72A3400-00301 　 　 　 Toshiba Surveillance 3.5" SATA 6Gb/s HDD 4TB, 7200RPM, 3-year warranty, 1 in 1 Packing
        Data Service License
        SOFT-DRSDS-0010 　 　 　 EonStor DS Advanced Local Replication License (Snapshot and Volume Copy/Mirror)
        SOFT-REMDS-0010 　 　 　 EonStor DS Remote Replication License
        SOFT-SSDDS01-0010 　 　 　 EonStor DS SSD Cache License
        SOFT-TIERDS-0010 　 　 　 EonStor DS Automated Storage Tiering(2 tiers)
        SOFT-TIERDS01-0010 　 　 　 EonStor DS Advanced Automated Storage Tiering License(4 tiers)
        Expansion Enclosure
        JB2016G01 　 For DS 2024G 　 3U/16bay Single controller JBOD including 1x 6Gb SAS port, 2x(PSU+FAN module), 16xHDD trays and 1xRackmount kit
        JB2016R01 　 For DS 2024R 　 3U/16bay Dual redundant controller JBOD including 2x 6Gb SAS port, 2x(PSU+FAN module), 12xHDD trays and 1xRackmount kit
        JB2048G00 　 For DS 2024G 　 4U/48bay Single controller JBOD including 1x 6Gb SAS port, 3x(PSU+FAN module), 48xHDD trays and 1xRackmount kit
        JB2048R00 　 For DS 2024R 　 4U/48bay Dual redundant controller JBOD including 2x 6Gb SAS port, 3x(PSU+FAN module), 48xHDD trays and 1xRackmount kit
        JB2060G00 　 For DS 2024G 　 4U/60bay Single controller JBOD including 1x 6Gb SAS port, 2x(PSU+FAN module), 60xHDD trays and 1xRackmount kit
        JB2060R00 　 For DS 2024R 　 4U/60bay Dual redundant controller JBOD including 2x 6Gb SAS port, 2x(PSU+FAN module), 60xHDD trays and 1xRackmount kit
        Service & Warranty
        WTE2DS1024G-0010 　 　 　 1-year extended warranty license for ESDS 1024G/2024G models
        WTE2DS1024R-0010 　 　 　 1-year extended warranty license for ESDS 1024R/2024R models
        Cable/SFP Module
        9270CFCCab04-0010 　 Suggested item for 8Gb/16Gb FC and 10Gb iSCSI (SFP+)host 　 Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 1 Meter
        9270CFCCab05-0010 　 Suggested item for 8Gb/16Gb FC host and 10Gb iSCSI (SFP+)host 　 Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 5 Meters
        9270CFCCab06-0010 　 Suggested item for 8Gb/16Gb FC host and 10Gb iSCSI (SFP+)host 　 Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 10 Meters
        9270CmSASCab7-0030 　 　 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 50 Centimeters
        9270CmSASCab8-0030 　 　 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 120 Centimeters
        9270CmSASCab9-0030 　 　 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 260 Centimeters
        9370CmSASCab1-0030 　 　 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 50 Centimeters
        9370CmSASCab2-0030 　 　 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 120 Centimeters
        9370CmSASCab3-0030 　 　 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 260 Centimeters
        9370CSFP10G-0010 　 Suggested item for 10Gb iSCSI (SFP+) host 　 10G BASE-SR SFP+ Transceiver, LC, multi-mode
        9370CSFP16G-0010 　 Suggested item for 16Gb FC host 　 16Gb/s Fibre Channel SFP optical transceiver, LC, wave-length 850nm, multi-mode
        9370CSFP8G-0010 　 Suggested item for 8Gb FC host 　 Fibre Channel 8.5 / 4.25 / 2.125 GBd Small Form Pluggable Optical Transceiver, LC, wave-length 850nm, multi-mode
        9373ASCAB-0010 　 DS 2024G 　 RS-232C cable, DB9 to DB9
        9373AYCAB-0010 　 Default Included for ESDS 2024R 　 DB-9 Y-cable for dual-controller subsystems; maintenance-free during controller failover/failback
        HBA Card
        BH1EMF210-0010 　 　 　 HBA card,LPe12000, FC-8G, Single port,1 in 1 package
        BH1EMF211-0010 　 　 　 HBA card, LPe12002, FC-8G, Dual ports, 1 in 1 package
        BH1EMF310-0010 　 　 　 HBA card, LPe16000B, FC-16G, Single port, 1 in 1 package
        BH1EMF311-0010 　 　 　 HBA card, LPe16002B, FC-16G, Dual ports, 1 in 1 package
        BH1LSS210-0010 　 　 　 HBA card, LSI SAS9200-8E, SAS 6G, PCI-e 2.0, Dual port (SFF8088), 1 in 1 package, 3-year warranty
        BH1QGF210-0010 　 　 　 HBA card, QLE2562, FC-8G, Dual port, 1 in 1 package
        BH1QGF211-0010 　 　 　 HBA card, QLE2560, FC-8G, Single port, 1 in 1 package
        BH1QGF310-0010 　 　 　 HBA card, QLE2670, FC-16G, Single port, 1 in 1 package
        BH1QGF311-0010 　 　 　 HBA card, QLE2672, FC-16G, Dual port, 1 in 1 package
        BH4LSS210-0010 　 　 　 HBA card, LSI SAS 9207-8e, SAS 6G, PCI-e 3.0, Dual port (SFF8088), 1 in 1 package, 3-year warranty
        BH4LSS310-0010 　 　 　 HBA card, LSI SAS9300-8E, SAS 12G, PCI-e 3.0, Dual port (SFF8644), 1 in 1 package, 3-year warranty
        Controller Module
        84SC20G24MB-0010 　 　 　 Controller module w/2GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2024G subsystem
        84SC20G24MC-0010 　 　 　 Controller module w/4GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2024G subsystem
        84SC20G24MD-0010 　 　 　 Controller module w/8GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2024G subsystem
        84SC20G24MF-0010 　 　 　 Controller module w/16GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2024G subsystem
        84SC20R24CMB-0010 　 　 　 Controller module w/2GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2024RC subsystem
        84SC20R24CMC-0010 　 　 　 Controller module w/4GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2024RC subsystem
        84SC20R24CMD-0010 　 　 　 Controller module w/8GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2024RC subsystem
        84SC20R24CMF-0010 　 　 　 Controller module w/16GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2024RC subsystem
        Other Accessories
        9571CDTRAY-0030 　 Default Included 　 Hybrid tray to accommodating 2.5" or 3.5" hard disk drives for ESDS 1000, ESDS 2000 and JB2000-1
        9571CEAR-0010 　 Default Included (China Only) 　 Rack ear assembly, for ESDS 1000/2000/4000 subsystems, 19" rack depth
        9571CPSU-0010 　 Default Included 　 Power supply unit w/FAN module for ESDS 1000,ESDS 2000 and JB 2000-1 subsystems, 460W capacity
        9571CSLIDER-0010 　 Default Included (China Excluded) 　 Slide rail assembly, for ESDS 1000/2000/4000 subsystems, 23"~37" rack depth
        9571SCBM-0010 　 Default Included for DS2024R(by region) 　 Cache backup module, Super capacitor , Flash, for ESDS 1000 and ESDS 2000
        9571SCBU-0010 　 For Super Cap replacement 　 Capacitor backup unit, Super capacitor, for ESDS 1000 and ESDS 2000
        DDR3NNCMB2-0010 　 　 　 2GB DDR-III DIM module for EonStor DS, EonNAS and ESVA subsystem
        DDR3NNCMC4-0010 　 　 　 4GB DDR-III DIM module for EonStor DS, EonNAS and ESVA subsystem
        DDR3NNCMD-0010 　 　 　 8GB DDR-III DIM module for EonStor DS, EonNAS and ESVA subsystem

      • Data Service





        Thin provisioning

        Local Replication (Snapshot, Volume Copy/ Mirror)
        Automated Storage Tiering

        Remote Replication



    • ESDS 2016

    • This 3U 16-bay system is offered with single or dual controller configurations and boasts a convenient modular hardware design. Access to all components is easy, helping streamline maintenance and upgrades. To ensure energy savings, systems ship with redundant 80 PLUS power supplies.




    ESDS 2012
    ESDS 2024

    Comment
