  • ESDS 2000 series

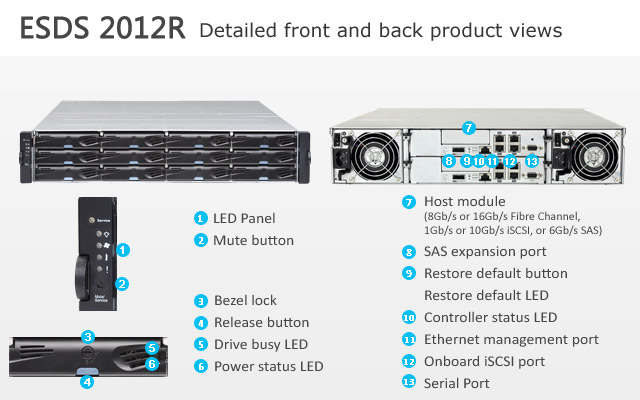

  • ESDS 2012

  • All the advantages and features of the EonStor DS 2000 series in a 2U, 12-bay rackmount form factor. Available in single or dual controller configurations, with a modular hardware design that includes redundant 80 PLUS power supplies and easy access to every component.






    Features Specifications Purchase Reference Related Information

    • Product advantages




      Great value storage solution for SMBs that delivers outstanding IOPS

      • High performance to accommodate more IOPS-intensive applications at SMBs, such as databases, VDI, Microsoft Exchange, and file servers


      Rich data services plus SSD cache, automated storage tiering, and remote replication support

      • SSD Cache boosts read IOPS and reduces cache response time
      • Automated storage tiering makes the most of SSD speed and spin drive capacity
      • Remote replication backs up data to offsite locations for reliable disaster recovery
      • 64 replication pair volume mirror/copy (upgradable to 256)
      • Includes licenses for snapshot, volume copy/mirror, and thin provisioning
      • Thin provisioning increases storage utilization to 80%
      • 128-target snapshot included (upgradable to 4096 targets)
      • Compatible with self-encrypting drives (SED) to deliver unbreakable data security plus fast and complete deletion


      Data protection solutions

      • Super capacitors with flash module to keep data saved in cache live and accessible during power outages and other disruptions
      • Cached data remains powered for extended periods of time to ensure recovery even after prolonged outages

      Customizable and scalable

      • Systems tailored to your budget plans and expand conveniently when more capacity is needed
      • Compatible with a range of Infortrend JBOD expansion enclosures, including high density 4U 60-bay units
      • Up to 316 disk drives per system, with support for 6TB drives – nearly 2PB in total capacity


      Easy to use

      • Exclusive SANWatch 3.0 browser-based GUI features an intuitive and simple design
      • User interface integrates all major system functions


      Green design

        • Energy efficient components include SoC processor and 80 PLUS power supplies
        • Intelligent drive and fan spin-down moderate energy consumption



        Features

        		 　

        Benefits

        Up to 780K IOPS and 5,500 Mbps throughput

        		 　 Powerful computing power offers segment-leading storage performance to accelerate all applications, while larage storage throughput helps SMBs save tiem and increase effectiveness without having to spend beyond their means

        Scalability

        		 　 Expand storage to 1,872TB using a total 312 drives via JBOD enclosures

        Hybrid host interface with optional onboard iSCSI

        		 　 Combine diverse connectivity environments on one system for greater utility

        Multiple host interface options

        		 　 Choose 8Gb/s or 16Gb/s Fibre Channel, 1Gb/s or 10Gb/s iSCSI, or 6Gb/s or 12Gb/s SAS based on your needs and budget

        Automated storage tiering

        		 　 Using SSD, accelerate performance up to three times compared to all-spin storage

        Secure remote replication

        		 　 The backup to offsite locations provides very reliable and safe disaster recovery

        Tiered event messages

        		 　 Clear and easily actionable system notifications keep you informed and in control

        Smart media scan

        		 　 Works in the background to enhance data integrity and prevent corruption

        Thin provisioning

        		 　 Improve storage utilization up to 80% - get more for your investment

        Multi-target snapshot

        		 　 With up to 4096 targets, always have backups to recover vital data at different points in time

        Multi-pair volume copy/mirror

        		 　 Up to 64 pairs ensure entire volumes can be backed up with minimal effort as data grows

        SANWatch 3.0 interface

        		 　 User friendly browser-based deployment and management

        Intelligent drive spin-down and 80 PLUS power supplies

        		 　 Lower costs through reduced power draw and longer drive lifespan

        Super Capacitors

        		 　 Deliver power and securely save cached data to flash modules during electric grid outages

      • Host Ports

        		 　 Onboard Gb/s ports
        　 Eight 1Gb/s iSCSI ports (4 per controller)
        　 More host options:
        　 Four 16Gb/s Fibre Channel ports (2 per controller)
        　 Eight 8Gb/s Fibre Channel ports (4 per controller)
        　 Four 10Gb/s iSCSi ports/ SFP+ or RJ-45 (2 per controller)
        　 Eight 1Gb/s iSCSI ports (4 per controller)
        　 Four 12Gb/s SAS ports (2 per controller)
        　 Four 6Gb/s SAS ports (2 per controller)

        Controller

        		 　 Dual redundant controllers

        Cache Memory

        		 　 Default 4GB (2x2GB), up to 8GB (4x2GB), 16GB (4x4GB) or 32GB (4x8GB)
        　 ** Default installed memory may vary by model, region, and other factors. Contact our sales representatives for details.

        Cache Backup Techniques

        		 　 Super Capacitor + Flash module

        Drive Connectivity

        		 　 6Gb/s SAS connectivity
        　 S.M.A.R.T. support
        　 Automatic bad-sector reassignment
        　 Dedicated bandwidth to each connected drive

        Support Drives

        		 　 2.5" SAS SSD - 200GB, 400GB or 800GB
        　 2.5" 10,000 RPM 6Gb/s SAS drives - 300GB, 600GB, 900GB or 1.2TB
        　 3.5" 7,200 RPM 6Gb/s Nearline SAS drives - 1TB, 2TB, 3TB, 4TB or 6TB
        　 3.5" 7,200 6Gb/s SATA drives - 1TB, 2TB, 3TB, 4TB or 5TB
        　 ** For the latest compatibility details, please contact our sales representatives

        Maximum Number of Drives

        		 　 Per system: 12
        　 Via JBOD: 312

        Corresponding Expansion Enclosure

        		 　 Please refer to Related Information

        Form Factor

        		 　 2U

        RAID Functionality

        		 　 Global, dedicated or enclosure hot-spare
        　 RAID levels supported : RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60
        　 Online expansion by:
        　 Adding new drives
        　 Copying and replacing drives with drives of larger capacity
        　 RAID migration
        　 Configurable stripe size and write policy per system
        　 Intelligent drive handling
        　  In degraded mode: skips irreparable blocks to continue rebuild
        　  In normal operation: data-block verification and repair

        Data Services

        		 　 Thin provisioning
        　 SSD Cache*
        　 SED (Self-encrypting drives)
        　 Automated storage tiering*
        　 Local replication**
        　 Snapshot
        　 Volume copy/ mirror
        　 Remote replication*
        　 Synchronous or asynchronous
        　 * Optional
        　 ** Available with Standard license and optional Advanced license

        Green Design

        		 　 80 PLUS-certified power supplies delivering more than 80% energy efficiency
        　 Intelligent multi-level drive spin-down

        Availability and Reliability

        		 　 Redundant, hot-swappable hardware modules
        　 CacheSafe technology
        　 Multi-pathing support (EonPath)
        　 Device mapper support

        Notification

        		 　 Various event notification methods including email, LAN broadcast, fax, SNMP traps, SMS, and Skype.

        Management

        		 　 Web-based SANWatch management software
        　 RS232 serial port for local access to firmware-embedded utility
        　 Automated cache flush and caching mode operation per enclosure status
        　 Telnet and SSH system monitoring via Ethernet
        　 Platform-independent firmware management GUI
        　 LCD keypad panel for monitoring and access to all configuration options
        　 Module status LED indicators: component presence detection & thermal sensors via I2C bus

        OS Support

        		 　 Windows Server 2008, 2008 R2, 2012, 2012 R2 (including Hyper-V)
        　 RedHat Enterprise Linux
        　 SUSE Linux Enterprise
        　 Sun Solaris
        　 Mac OS X
        　 VMware
        　 Citrix
        　 IBM AIX
        　 HP-UX
        　 ** For the latest OS support details, please contact our sales representatives.

        Service and Support

        		 　 Standard service: 2-year limited hardware/software warranty and 8x5 phone, web, and email support
        　 ​Upgrade/Extension service*: replacement part dispatch on the next business day (up to 5 years)
        　 Advanced Service: 24x7 phone, web and email support + onsite diagnostics on the next business day
        　 ​Premium Service: 24x7 phone, web and email support + onsite diagnostics in 4 hours
        　 * Optional
        　 ** Service may vary by region

        Power

        		 　 Power supplies: Two 460W
        　 AC voltage: 100VAC @ 8A to 240VAC @ 4A with PFC (auto-switching)
        　 Frequency: 50-60 Hz

        Environmental

        		 　 Temperature:
        　 Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
        　 Non-operating: -40 to 60°
        　 Altitude: Sea level to 3660m (12,000ft) operating / sea level to 12,192m (40,000ft) non-operating
        　 Relative humidity: 5 to 95% non-condensing, operating and non-operating

        Regulatory

        		 　 Safty: UL, BSMI, CB, EAC
        　 Electromangnetic Campatibility: CE, BSMI, FCC, KC

        Dimensions

        		 　 446mm (W) x 88mm (H) x 513mm (D)
        　 **Without chassis ears / protrusions

        Weight

        		 　 13.60kg/ 29.98lbs (without HDDs)

        Package Dimensions

        		 　 770mm (W) x 590mm (H) x 225mm (D)

      • The “Purchase Reference” feature enables customers to request a quote from Infortrend sales representatives. Please note that actual product orders and purchases are not processed via Infortrend's website. If you wish to order and purchase Infortrend products, please contact our sales representatives directly.


        Please note the following:


        1. The list below is based on standard worldwide shipment, models may vary by region. Infortrend sales representatives can provide more information about shipment variations in your region.
        2. “Default Included” means that a component is standard included in system orders. Customers may order additional units to serve as spare components.



        System
        DS2012G00000B 　 EonStor DS 2000 2U/12bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports +1x host board slot(s), 1x2GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
        DS2012G00000C 　 EonStor DS 2000 2U/12bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports +1x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
        DS2012G00000D 　 EonStor DS 2000 2U/12bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports +1x host board slot(s), 2x4GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
        DS2012G00000F 　 EonStor DS 2000 2U/12bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports +1x host board slot(s), 2x8GB, 2x(PSU+FAN Module), 12xHDD trays and 1xRackmount kit
        DS2012R0C000B 　 EonStor DS 2000 2U/12bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 12xHDD trays and 1xRackmount kit
        DS2012R0C000C 　 EonStor DS 2000 2U/12bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x2GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 12xHDD trays and 1xRackmount kit
        DS2012R0C000D 　 EonStor DS 2000 2U/12bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x4GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 12xHDD trays and 1xRackmount kit
        DS2012R0C000F 　 EonStor DS 2000 2U/12bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x8GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 12xHDD trays and 1xRackmount kit
        Host board
        RER01G0HIO4-0010 　 EonStor / EonStor DS host board with 4 x 1Gb/s iSCSI ports
        RER10G0HIO2-0010 　 EonStor / EonStor DS host board with 2 x 10Gb/s iSCSI (RJ-45) ports
        RES10G0HIO2-0010 　 EonStor / EonStor DS host board with 2 x 10Gb/s iSCSI (SFP+) ports
        RFC08G0HIO4-0010 　 EonStor / EonStor DS host board with 4 x 8Gb/s FC ports
        RFC16G0HIO2-0010 　 EonStor / EonStor DS host board with 2 x 16Gb/s FC ports
        RSS06G0HIO2-0010 　 EonStor / EonStor DS host board with 2 x 6Gb/s SAS ports
        RSS12G0HIO2-0010 　 EonStor / EonStor DS host board with 2 x12Gb/s SAS ports
        Hard Disk Drive/Solid State Drive/MUX Board
        9AHMUX3G-0010 　 MUX board for ESDS 3000(2.5" SATA drives), ESDS 1000(3.5",2.5" SATA drives) and ESDS 2000(3.5",2.5" SATA drives)
        H1090XB1XX1-0030 　 HGST 2.5" SAS 6Gb/s HDD 900GB,10000RPM, 1 in 1 Packing
        H72A1XA3XX1-0030 　 SATA 6Gb/s HDD, 2TB, 7200RPM, 1 in 1 Packing
        H72A1XS2XX1-0030 　 Hitachi SAS 6Gb/s HDD, 2TB, 7200RPM, 1 in 1 Packing
        H72A2XA2XX1-0030 　 SATA 6Gb/s HDD, 3TB, 7200RPM, 1 in 1 Packing
        H72A2XS2XX1-0030 　 Hitachi SAS 6Gb/s HDD, 3TB, 7200RPM, 1 in 1 Packing
        H72A3XA3XX1-0030 　 Hitachi SATA 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing
        HELH72S2400-00301 　 HGST 3.5" SAS 6Gb/s HDD 4TB, 7200RPM, 1 in 1 Packing
        HELH72S2600-00301 　 HGST SAS 6Gb/s HDD, 6TB, 7200RPM, 1 in 1 Packing
        HELS72A3200-00301 　 Seagate 3.5" SATA 6Gb/s HDD 2TB, 7200RPM, 1 in 1 Packing
        HELS72A3300-00301 　 Seagate 3.5" SATA 6Gb/s HDD 3TB, 7200RPM, 1 in 1 Packing
        HELS72A3400-00301 　 Seagate 3.5" SATA 6Gb/s HDD 4TB, 7200RPM, 1 in 1 Packing
        HELS72A3500-00301 　 Seagate SATA 6Gb/s HDD, 5TB, 7200RPM, 1 in 1 Packing
        HELS72A3600-00301 　 Seagate Enterprise 3.5" SATA 6Gb/s HDD 6TB, 7200RPM, 1 in 1 Packing
        HELS72S2200-00301 　 Seagate 3.5" SAS 6Gb/s HDD 2TB, 7200RPM, 1 in 1 Packing
        HELS72S2300-00301 　 Seagate 3.5" SAS 6Gb/s HDD 3TB, 7200RPM, 1 in 1 Packing
        HELS72S2400-00301 　 Seagate SAS 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing
        HELT72S2400-00301 　 Toshiba SAS 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing
        HESH10S2120-00301 　 HGST 2.5" SAS 6Gb/s HDD 1.2TB,10000RPM, 1 in 1 Packing
        HEST10S2030-00301 　 Toshiba 2.5" SAS 6Gb/s HDD 300GB, 10000RPM, 1 in 1 Packing
        HEST10S2060-00301 　 Toshiba 2.5" SAS 6Gb/s HDD 600GB, 10000RPM, 1 in 1 Packing
        HESTSSS3020-00301 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 200GB, 1 in 1 Packing
        HESTSSS3040-00301 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 400GB, 1 in 1 Packing.
        HESTSSS3080-00301 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 800GB, 1 in 1 Packing.
        HESTSSS3160-00301 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 1.6TB, 1 in 1 Packing.
        HSLT72A3200-00301 　 Toshiba Surveillance 3.5" SATA 6Gb/s HDD 2TB, 7200RPM, 3-year warranty, 1 in 1 Packing
        HSLT72A3300-00301 　 Toshiba Surveillance 3.5" SATA 6Gb/s HDD 3TB, 7200RPM, 3-year warranty, 1 in 1 Packing
        HSLT72A3400-00301 　 Toshiba Surveillance 3.5" SATA 6Gb/s HDD 4TB, 7200RPM, 3-year warranty, 1 in 1 Packing
        Data Service License
        SOFT-DRSDS-0010 　 EonStor DS Advanced Local Replication License (Snapshot and Volume Copy/Mirror)
        SOFT-REMDS-0010 　 EonStor DS Remote Replication License
        SOFT-SSDDS01-0010 　 EonStor DS SSD Cache License
        SOFT-TIERDS-0010 　 EonStor DS Automated Storage Tiering(2 tiers)
        SOFT-TIERDS01-0010 　 EonStor DS Advanced Automated Storage Tiering License(4 tiers)
        Expansion enclosure
        JB2012G01 　 2U/12bay Single controller JBOD including 1x 6Gb SAS port, 2x(PSU+FAN module), 12xHDD trays and 1xRackmount kit
        JB2012R01 　 2U/12bay Dual redundant controller JBOD including 2x 6Gb SAS port, 2x(PSU+FAN module), 12xHDD trays and 1xRackmount kit
        JB2048G00 　 4U/48bay Single controller JBOD including 1x 6Gb SAS port, 3x(PSU+FAN module), 48xHDD trays and 1xRackmount kit
        JB2048R00 　 4U/48bay Dual redundant controller JBOD including 2x 6Gb SAS port, 3x(PSU+FAN module), 48xHDD trays and 1xRackmount kit
        JB2060G00 　 4U/60bay Single controller JBOD including 1x 6Gb SAS port, 2x(PSU+FAN module), 60xHDD trays and 1xRackmount kit
        JB2060R00 　 4U/60bay Dual redundant controller JBOD including 2x 6Gb SAS port, 2x(PSU+FAN module), 60xHDD trays and 1xRackmount kit
        Service & Warranty
        WTE2DS1012G-0010 　 1-year extended warranty for ESDS 1012G/2012G models
        WTE2DS1012R-0010 　 1-year extended warranty for ESDS 1012R/2012R models
        Cable/SFP Module
        9270CFCCab04-0010 Suggested item for 8Gb/16Gb FC and 10Gb iSCSI (SFP+)host Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 1 Meter
        9270CFCCab05-0010 Suggested item for 8Gb/16Gb FC host and 10Gb iSCSI (SFP+)host Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 5 Meters
        9270CFCCab06-0010 Suggested item for 8Gb/16Gb FC host and 10Gb iSCSI (SFP+)host Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 10 Meters
        9270CmSASCab7-0030 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 50 Centimeters
        9270CmSASCab8-0030 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 120 Centimeters
        9270CmSASCab9-0030 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 260 Centimeters
        9370CmSASCab1-0030 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 50 Centimeters
        9370CmSASCab2-0030 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 120 Centimeters
        9370CmSASCab3-0030 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 260 Centimeters
        9370CSFP10G-0010 Suggested item for 10Gb iSCSI (SFP+) host 10G BASE-SR SFP+ Transceiver, LC, multi-mode
        9370CSFP16G-0010 Suggested item for 16Gb FC host 16Gb/s Fibre Channel SFP optical transceiver, LC, wave-length 850nm, multi-mode
        9370CSFP8G-0010 Suggested item for 8Gb FC host Fibre Channel 8.5 / 4.25 / 2.125 GBd Small Form Pluggable Optical Transceiver, LC, wave-length 850nm, multi-mode
        9373ASCAB-0010 ESDS 2012G RS-232C cable, DB9 to DB9
        9373AYCAB-0010 Default Included for ESDS 2012R DB-9 Y-cable for dual-controller subsystems; maintenance-free during controller failover/failback
        Controller module
        83SC10GH124MB-0010 ESDS 2012G Controller module w/2GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2012G subsystem
        83SC10GH124MC-0010 ESDS 2012G Controller module w/4GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2012G subsystem
        83SC10GH124MD-0010 ESDS 2012G Controller module w/8GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2012G subsystem
        83SC10GH124MF-0010 ESDS 2012G Controller module w/16GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 2012G subsystem
        83SC20RH12CMB-0010 ESDS 2012R Controller module w/2GB DDR-III & 1x host board slot & 1x (Super capacitor+Flash module), ESDS 2012R subsystem
        83SC20RH12CMC-0010 ESDS 2012R Controller module w/4GB DDR-III & 1x host board slot & 1x (Super capacitor+Flash module), ESDS 2012R subsystem
        83SC20RH12CMD-0010 ESDS 2012R Controller module w/8GB DDR-III & 1x host board slot & 1x (Super capacitor+Flash module), ESDS 2012R subsystem
        83SC20RH12CMF-0010 ESDS 2012R Controller module w/16GB DDR-III & 1x host board slot & 1x (Super capacitor+Flash module), ESDS 2012R subsystem
        Other Accessories
        9571CDTRAY-0030 Default Included Hybrid tray to accommodating 2.5" or 3.5" hard disk drives for ESDS 1000, ESDS 2000 and JB2000-1
        9571CEAR-0010 Default Included (China Only) Rack ear assembly, for ESDS 1000/2000 subsystems, 19" rack depth
        9571CPSU-0010 Default Included Power supply unit w/FAN module for ESDS 1000,ESDS 2000 and JB 2000-1 subsystems, 460W capacity
        9571CSLIDER-0010 Default Included (China Excluded) Slide rail assembly, for ESDS 1000/2000 subsystems, 23"~37" rack depth
        9571SCBM-0010 Default Included for ESDS 2012R (by region) Cache backup module, Super capacitor , Flash, for ESDS 1000 and ESDS 2000
        9571SCBU-0010 For Super Cap replacement Battery backup unit, Super capacitor, for ESDS 1000 and ESDS 2000
        DDR3NNCMB2-0010 　 2GB DDR-III DIM module for ESDS 3000/1000/2000 series
        DDR3NNCMC4-0010 　 4GB DDR-III DIM module for ESDS G7i, ESDS 3000/1000/2000 and ESVA x75 subsystems
        DDR3NNCMD-0010 　 8GB DDR-III DIM module for ESDS G7i, ESDS 3000/1000/2000 and ESVA x75 subsystems

      • Data Service







        Thin provisioning

        Local Replication (Snapshot, Volume Copy/ Mirror)
        Automated Storage Tiering

        Remote Replication

    • ESDS 2012

    • All the advantages and features of the EonStor DS 2000 series in a 2U, 12-bay rackmount form factor. Available in single or dual controller configurations, with a modular hardware design that includes redundant 80 PLUS power supplies and easy access to every component.






    ESDS 1024B
    ESDS 2016

    Comment
