  • ESDS 1000 series

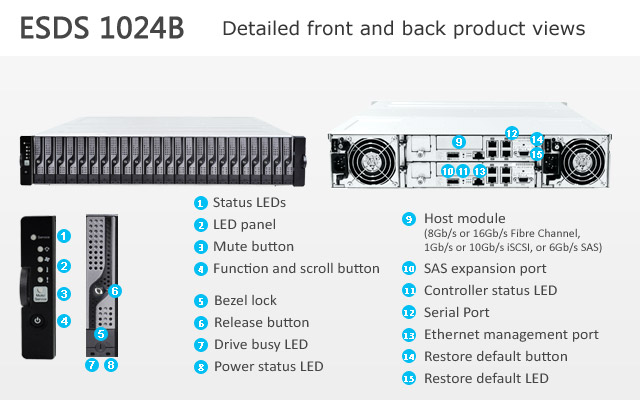

  • ESDS 1024B

  • Small form factor (SFF) arrays for 2.5” drives are optimized for SSD. They reduce energy consumption and require less space, resulting in higher efficiency, greater density, and lower operating costs. Priced for convenient adoption by SMBs, systems ship with enterprise data features and services, including self-encrypting drive (SED) compatibility, optional 4-tier automated storage tiering, and support for secure remote replication. Systems scale to 360 drives with JBOD enclosures.




    Features Specifications Purchase Reference Related Information

    • Product advantages



      Powerful yet affordabl performance

      • Up to 550K IOPS ensure ample aompute bandwidth for diverse applications
      • Throughput reaches 5,500MB/s read and 1,900MB/s write - accelerating major storage jobs and enhancing efficiency


      Hybrid host interface

      • Eight 1Gb/s iSCSI ports plus optional Fibre Channel, SAS, or higher speed iSCSI
      • Choose from 8Gb/s or 16Gb/s Fibre Channel, 10Gb/s iSCSI, 6Gb/s SAS or 12Gb/s SAS


      Data protection solutions

      • Choice of hot-swappable flash module BBU (backup battery unit) or Super Capacitors with flash module to keep data saved in cache live and accessible during power outages and other disruptions
      • With both options cached data remains powered for extended periods of time to ensure recovery even after prolonged outages

      Customizable and scalable

      • Systems tailored to your budget plans and expand conveniently when more capacity is needed
      • Compatible with a range of Infortrend JBOD expansion enclosures, including high density 4U 60-bay units
      • Up to 360 disk drives per system, with support for 6TB drives – nearly 2PB in total capacity

      Enterprise-class data services

        • Include licenses for snapshot, volume copy/mirror, and thin provisioning
        • Support automated storage tiering to leverage SSD speed and enhanced remote replication disaster recovery



        Easy to use

        • Exclusive SANWatch 3.0 browser-based GUI features an intuitive and simple design
        • User interface integrates all major system functions



        Green design

          • Energy efficient components include SoC processor and 80 PLUS power supplies
          • Intelligent drive and fan spin down moderate energy consumption



          Features

          		 　

          Benefits

          Up to 550K IOPS and  　 Powerful computing power offers segment-leading storage performance to
          5,500 MBps throughput  　 accelerate all applications, while larage storage throughput helps SMBs save tiem and increase effectiveness without having to spend beyond their means
          Dual controllers and
          redundant power supplies          		 　 Fast failover performance and high data availability
          　
          Scalability 　 Expand storage to 2,160TB using a total 360 drives via JBOD enclosures
          Hybrid host interface
          with optional onboard iSCSI           		 　 Combine diverse connectivity environments on one system for greater utility
          　
          Multiple host interface options 　 Choose 8Gb/s or 16Gb/s Fibre Channel, 1Gb/s or 10Gb/s iSCSI, or 6Gb/s or 12Gb/s SAS based on your needs and budget
          Automated storage tiering 　 Using SSD, accelerate performance up to three times compared to all-spin storage
          Secure remote replication 　 The backup to offsite locations provides very reliable and safe disaster recovery
          Tiered event messages 　 Clear and easily actionable system notifications keep you informed and in control
          Smart media scan 　 Works in the background to enhance data integrity and prevent corruption
          Thin provisioning 　 Improve storage utilization up to 80% - get more for your investment
          Multi-target snapshot 　 With up to 4096 targets, always have backups to recover vital data at different points in time
          Multi-pair volume copy/mirror  　 Up to 64 pairs ensure entire volumes can be backed up with minimal effort as data grows
          SANWatch 3.0 interface 　 User friendly browser-based deployment and management
          Intelligent drive spin-down and
           80 PLUS power supplies            		 　 Lower costs through reduced power draw and longer drive lifespan

        • Host Ports

          		 Onboard Gb/s ports
          Eight 1Gb/s iSCSI ports (4 per controller)
          More host options:
          Four 16Gb/s Fibre Channel ports (2 per controller)
          Eight 8Gb/s Fibre Channel ports (4 per controller)
          Four 10Gb/s iSCSi ports/ SFP+ or RJ-45 (2 per controller)
          Eight 1Gb/s iSCSI ports (4 per controller)
          Four 12Gb/s SAS ports (2 per controller)
          　 Four 6Gb/s SAS ports (2 per controller)

          Controller

          		 　 Dual redundant controllers

          Cache Memory

          		 Default 4GB (2x2GB), up to 8GB (2x4GB) or 16GB (2x8GB)
          　 ** Default installed memory may vary by model, region, and other factors. Contact our sales representatives for details.

          Cache Backup Techniques

          		 　 Super Capacitor + Flash module or BBU (hot-swappable) + Flash module

          Drive Connectivity

          		 6Gb/s SAS connectivity
          S.M.A.R.T. support
          Automatic bad-sector reassignment
          　 Dedicated bandwidth to each connected drive

          Supported Drives

          		 2.5" SAS SSDs - 200GB, 400GB or 800GB
          2.5" SATA SSDs - 100GB, 200GB, 300GB, 400GB or 800GB *
          2.5" 10,000 RPM SAS drives - 300GB, 450GB, 600GB, 900GB or 1.2TB
          * MUX board required when using SATA drives
          　 ** For the latest compatibility details, please contact our sales representatives

          Maximum Number of Drives

          		 Per system: 24
          　 Via JBOD: 360

          Corresponding Expansion Enclosure

          		 　 Please refer to Related Information

          Form Factor

          		 　 2U

          RAID Functionality

          		 Global, dedicated or enclosure hot-spare
          RAID levels supported : RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60
          Online expansion by:
          Adding new drives
          Copying and replacing drives with drives of larger capacity
          RAID migration
          Configurable stripe size and write policy per system
          Intelligent drive handling
           In degraded mode: skips irreparable blocks to continue rebuild
          　  In normal operation: data-block verification and repair

          Data Services

          		 Thin provisioning
          SSD Cache*
          SED (Self-encrypting drives)
          Automated storage tiering*
          Local replication**
          Snapshot
          Volume copy/ mirror
          Remote replication*
          Synchronous or asynchronous
          * Optional
          　 ** Available with Standard license and optional Advanced license

          Green Design

          		 High-efficiency power supplies
          　 Intelligent multi-level drive spin-down

          Availability and Reliability

          		 Redundant, hot-swappable hardware modules
          CacheSafe technology
          Multi-pathing support (EonPath)
          　 Device mapper support

          Notification

          		 　 Various event notification methods including email, LAN broadcast, fax, SNMP traps, SMS, and Skype.

          Management

          		 Web-based SANWatch management software
          RS232 serial port for local access to firmware-embedded utility
          Automated cache flush and caching mode operation per enclosure status
          Telnet and SSH system monitoring via Ethernet
          Platform-independent firmware management GUI
          　 Module status LED indicators: component presence detection & thermal sensors via I2C bus

          OS Support

          		 Windows Server 2008, 2008 R2, 2012, 2012 R2 (including Hyper-V)
          RedHat Enterprise Linux
          SUSE Linux Enterprise
          Sun Solaris
          Mac OS X
          VMware
          Citrix
          IBM AIX
          HP-UX
          　 ** For the latest OS support details, please contact our sales representatives.

          Service and Support

          		 Standard service: 2-year limited hardware/software warranty and 8x5 phone, web, and email support
          ​Upgrade/Extension service*: replacement part dispatch on the next business day (up to 5 years)
          Advanced Service: 24x7 phone, web and email support + onsite diagnostics on the next business day
          ​Premium Service: 24x7 phone, web and email support + onsite diagnostics in 4 hours
          * Optional
          　 ** Service may vary by region

          Power

          		 Power supplies: Two 460W
          AC voltage: 100VAC @ 8A to 240VAC @ 4A with PFC (auto-switching)
          　 Frequency: 50-60 Hz

          Environmental

          		 Temperature:
          Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
          Non-operating: -40 to 60°
          Altitude: Sea level to 3660m (12,000ft) operating / sea level to 12,192m (40,000ft) non-operating
          　 Relative humidity: 5 to 95% non-condensing, operating and non-operating

          Regulatory

          		 Safty: UL, BSMI, CB, EAC
          　 Electromangnetic Campatibility: CE, BSMI, FCC, KC

          Dimensions

          		 448mm (W) x 88mm (H) x 500mm (D)
          　 **Without chassis ears / protrusions

          Weight

          		 　 19.58kg/ 43.17lbs (without HDDs)

          Package Dimensions

          		 709mm (W) x 400mm (H) x 528mm (D)

        • The “Purchase Reference” feature enables customers to request a quote from Infortrend sales representatives. Please note that actual product orders and purchases are not processed via Infortrend's website. If you wish to order and purchase Infortrend products, please contact our sales representatives directly.


          Please note the following:


          1. The list below is based on standard worldwide shipment, models may vary by region. Infortrend sales representatives can provide more information about shipment variations in your region.
          2. “Default Included” means that a component is standard included in system orders. Customers may order additional units to serve as spare components.
          System
          DS1024G00B00B 　 　 　 EonStor DS 1000 2U/24bay, Single controller subsystem including 1x6Gb SAS EXP. Ports, 4x1G iSCSI ports +1x host board slot(s), 1x2GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
          DS1024G00B00C 　 　 　 EonStor DS 1000 2U/24bay, Single controller subsystem including 1x6Gb SAS EXP. Ports, 4x1G iSCSI ports +1x host board slot(s), 1x4GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
          DS1024G00B00D 　 　 　 EonStor DS 1000 2U/24bay, Single controller subsystem including 1x6Gb SAS EXP. Ports, 4x1G iSCSI ports +1x host board slot(s), 1x8GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
          DS1024G0CB00B 　 　 　 EonStor DS 1000 2U/24bay, Single controller subsystem including 1x6Gb SAS EXP. Ports, 4x1G iSCSI ports +1x host board slot(s), 1x2GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024G0CB00C 　 　 　 EonStor DS 1000 2U/24bay, Single controller subsystem including 1x6Gb SAS EXP. Ports, 4x1G iSCSI ports +1x host board slot(s), 1x4GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024G0CB00D 　 　 　 EonStor DS 1000 2U/24bay, Single controller subsystem including 1x6Gb SAS EXP. Ports, 4x1G iSCSI ports +1x host board slot(s), 1x8GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024G0LB00B 　 　 　 EonStor DS 1000 2U/24bay, Single controller subsystem including 1x6Gb SAS EXP. Ports, 4x1G iSCSI ports +1x host board slot(s), 1x2GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024G0LB00C 　 　 　 EonStor DS 1000 2U/24bay, Single controller subsystem including 1x6Gb SAS EXP. Ports, 4x1G iSCSI ports +1x host board slot(s), 1x4GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024G0LB00D 　 　 　 EonStor DS 1000 2U/24bay, Single controller subsystem including 1x6Gb SAS EXP. Ports, 4x1G iSCSI ports +1x host board slot(s), 1x8GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024GT0B00B 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Ports, 4x1G iSCSI ports +1x host board slot(s), 1x2GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
          DS1024GT0B00C 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Ports, 4x1G iSCSI ports +1x host board slot(s), 1x4GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
          DS1024GT0B00D 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Ports, 4x1G iSCSI ports +1x host board slot(s), 1x8GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
          DS1024GTCB00B 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Ports, 4x1G iSCSI ports +1x host board slot(s), 1x2GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024GTCB00C 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Ports, 4x1G iSCSI ports +1x host board slot(s), 1x4GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024GTCB00D 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Ports, 4x1G iSCSI ports +1x host board slot(s), 1x8GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024GTLB00B 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Ports, 4x1G iSCSI ports +1x host board slot(s), 1x2GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024GTLB00C 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Ports, 4x1G iSCSI ports +1x host board slot(s), 1x4GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024GTLB00D 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Ports, 4x1G iSCSI ports +1x host board slot(s),1x8GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024R00B00B 　 　 　 EonStor DS 1000 2U/24bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +1x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
          DS1024R00B00C 　 　 　 EonStor DS 1000 2U/24bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +1x host board slot(s), 2x4GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
          DS1024R00B00D 　 　 　 EonStor DS 1000 2U/24bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +1x host board slot(s), 2x8GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
          DS1024R0CB00B 　 　 　 EonStor DS 1000 2U/24bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024R0CB00C 　 　 　 EonStor DS 1000 2U/24bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 2x4GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024R0CB00D 　 　 　 EonStor DS 1000 2U/24bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x4GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024R0LB00B 　 　 　 EonStor DS 1000 2U/24bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024R0LB00C 　 　 　 EonStor DS 1000 2U/24bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 2x4GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024R0LB00D 　 　 　 EonStor DS 1000 2U/24bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 2x8GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024RT0B00B 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +1x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
          DS1024RT0B00C 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +1x host board slot(s), 2x4GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
          DS1024RT0B00D 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +1x host board slot(s), 2x8GB, 2x(PSU+FAN Module), 24xHDD trays and 1xRackmount kit
          DS1024RTCB00B 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024RTCB00C 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 2x4GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024RTCB00D 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 2x8GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024RTLB00B 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024RTLB00C 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 2x4GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024RTLB00D 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x4GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 24xHDD trays and 1xRackmount kit
          DS1024RTLB00F 　 High IOPS solution 　 EonStor DS 1000 2U/24bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x8GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 24xHDD trays and 1xRackmount kit
          Host board
          RER01G0HIO4-0010 　 　 　 EonStor / EonStor DS host board with 4 x 1Gb/s iSCSI ports
          RER10G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 10Gb/s iSCSI (RJ-45) ports
          RES10G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 10Gb/s iSCSI (SFP+) ports
          RFC08G0HIO4-0010 　 　 　 EonStor / EonStor DS host board with 4 x 8Gb/s FC ports
          RFC16G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 16Gb/s FC ports
          RSS06G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 6Gb/s SAS ports
          RSS12G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x12Gb/s SAS ports
          Hard Disk Drive/Solid State Drive/MUX Board
          9AHMUX3G-0010 　 Required for accommodating SATA drives 　 MUX board for ESDS 3000(2.5" SATA drives), ESDS 1000(3.5",2.5" SATA drives) and ESDS 2000(3.5",2.5" SATA drives)
          H1090XB1XX1-0030 　 　 　 HGST 2.5" SAS 6Gb/s HDD 900GB,10000RPM, 1 in 1 Packing
          HESH10S2120-00301 　 　 　 HGST 2.5" SAS 6Gb/s HDD 1.2TB,10000RPM, 1 in 1 Packing
          HEST10S2030-00301 　 　 　 Toshiba 2.5" SAS 6Gb/s HDD 300GB,10000RPM, 1 in 1 Packing
          HEST10S2060-00301 　 　 　 Toshiba 2.5" SAS 6Gb/s HDD 600GB,10000RPM, 1 in 1 Packing
          HESTSSS3020-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 200GB, 1 in 1 Packing
          HESTSSS3040-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 400GB, 1 in 1 Packing.
          HESTSSS3080-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 800GB, 1 in 1 Packing.
          HESTSSS3160-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 1.6TB, 1 in 1 Packing.
          Data Service License
          SOFT-DRSDS-0010 　 　 　 EonStor DS Advanced Local Replication License (Snapshot and Volume Copy/Mirror)
          SOFT-REMDS-0010 　 　 　 EonStor DS Remote Replication License
          SOFT-SSDDS01-0010 　 　 　 EonStor DS SSD Cache License
          SOFT-TIERDS-0010 　 　 　 EonStor DS Automated Storage Tiering(2 tiers)
          SOFT-TIERDS01-0010 　 　 　 EonStor DS Advanced Automated Storage Tiering License(4 tiers)
          Expansion enclosure
          JB2012G01 　 　 　 2U/12bay Single controller JBOD including 2x 6Gb SAS ports, 2x(PSU+FAN module), 12xHDD trays and 1xRackmount kit
          JB2012R00 　 　 　 2U/12bay Dual redundant controller JBOD including 4x 6Gb SAS ports, 2x(PSU+FAN module), 12xHDD trays and 1xRackmount kit
          JB2012R01 　 　 　 2U/12bay Dual redundant controller JBOD including 4x 6Gb SAS ports, 2x(PSU+FAN module), 12xHDD trays and 1xRackmount kit
          JB2012S00 　 　 　 2U/12bay Single controller JBOD including 2x 6Gb SAS ports, 2x(PSU+FAN module), 12xHDD trays and 1xRackmount kit
          JB2016G01 　 　 　 3U/16bay Single controller JBOD including 2x 6Gb SAS ports, 2x(PSU+FAN module), 16xHDD trays and 1xRackmount kit
          JB2016R00 　 　 　 3U/16bay Dual redundant controller JBOD including 4x 6Gb SAS ports, 2x(PSU+FAN module), 16xHDD trays and 1xRackmount kit
          JB2016R01 　 　 　 3U/16bay Dual redundant controller JBOD including 4x 6Gb SAS ports, 2x(PSU+FAN module), 16xHDD trays and 1xRackmount kit
          JB2016S00 　 　 　 3U/16bay Single controller JBOD including 2x 6Gb SAS ports, 2x(PSU+FAN module), 16xHDD trays and 1xRackmount kit
          JB2024RB0 　 　 　 2U/24bay Dual redundant controller JBOD including 4x 6Gb SAS ports, 2x(PSU+FAN module), 24xHDD trays and 1xRackmount kit
          JB2024SB0 　 　 　 2U/24bay Single controller JBOD including 2x 6Gb SAS port, 2x(PSU+FAN module), 24xHDD trays and 1xRackmount kit
          JB2048R00 　 　 　 4U/48bay Dual redundant controller JBOD including 2x 6Gb SAS ports, 3x(PSU+FAN module), 48xHDD trays and 1xRackmount kit
          JB2048S00 　 　 　 4U/48bay Single controller JBOD including 2x 6Gb SAS ports, 3x(PSU+FAN module), 48xHDD trays and 1xRackmount kit
          JB2060R00 　 　 　 4U/60bay Dual redundant controller JBOD including 2x 6Gb SAS ports, 2x(PSU+FAN module), 60xHDD trays and 1xRackmount kit
          JB2060S00 　 　 　 4U/60bay Single controller JBOD including 2x 6Gb SAS ports, 2x(PSU+FAN module), 60xHDD trays and 1xRackmount kit
          Service & Warranty
          WTE2DS1024GB-0010 　 　 　 1-year extended warranty for ESDS 1024GB/2024GB models
          WTE2DS1024RB-0010 　 　 　 1-year extended warranty for ESDS 1024RB/2024RB models
          Cable/SFP Module
          9270CFCCAB04-0010 　 Suggested item for 8Gb/16Gb FC and 10Gb iSCSI (SFP+)host 　 Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 1 Meter
          9270CFCCAB05-0010 　 Suggested item for 8Gb/16Gb FC host and 10Gb iSCSI (SFP+)host 　 Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 5 Meters
          9270CFCCAB06-0010 　 Suggested item for 8Gb/16Gb FC host and 10Gb iSCSI (SFP+)host 　 Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 10 Meters
          9270CmSASCab7-0030 　 　 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 50 Centimeters
          9270CmSASCab8-0030 　 　 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 120 Centimeters
          9270CmSASCab9-0030 　 　 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 260 Centimeters
          9370CmSASCab1-0030 　 　 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 50 Centimeters
          9370CmSASCab2-0030 　 　 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 120 Centimeters
          9370CmSASCab3-0030 　 　 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 260 Centimeters
          9370CSFP10G-0010 　 Suggested item for 10Gb iSCSI (SFP+) host 　 10G BASE-SR SFP+ Transceiver, LC, multi-mode
          9370CSFP16G-0010 　 Suggested item for 16Gb FC host 　 16Gb/s Fibre Channel SFP optical transceiver, LC, wave-length 850nm, multi-mode
          9370CSFP8G-0010 　 Suggested item for 8Gb FC host 　 Fibre Channel 8.5 / 4.25 / 2.125 GBd Small Form Pluggable Optical Transceiver, LC, wave-length 850nm, multi-mode
          9373ASCAB-0010 　 ESDS 1024GB 　 RS-232C cable, DB9 to DB9
          9373AYCAB-0010 　 Default Included for ESDS 1024RB 　 DB-9 Y-cable for dual-controller subsystems; maintenance-free during controller failover/failback
          Controller module
          8BSC10G24MB-0010 　 　 　 Controller module w/2GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 1024GB subsystem
          8BSC10G24MC-0010 　 　 　 Controller module w/4GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 1024GB subsystem
          8BSC10G24MD-0010 　 　 　 Controller module w/8GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 1024GB subsystem
          8BSC10G24TMB-0010 　 High IOPS solution 　 Controller module w/2GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 1024GTB subsystem
          8BSC10G24TMC-0010 　 High IOPS solution 　 Controller module w/4GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 1024GTB subsystem
          8BSC10G24TMD-0010 　 High IOPS solution 　 Controller module w/8GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 1024GTB subsystem
          8BSC10R24CMB-0010 　 　 　 Controller module w/2GB DDR-III & 1x host board slot & 1x (Super capacitor + Flash module), ESDS 1024RCB subsystem
          8BSC10R24CMC-0010 　 　 　 Controller module w/4GB DDR-III & 1x host board slot & 1x (Super capacitor + Flash module), ESDS 1024RCB subsystem
          8BSC10R24CMD-0010 　 　 　 Controller module w/8GB DDR-III & 1x host board slot & 1x (Super capacitor + Flash module), ESDS 1024RCB subsystem
          8BSC10R24LMB-0010 　 　 　 Controller module w/2GB DDR-III & 1x host board slot & 1x (BBU+Flash module), ESDS 1024RLB subsystem
          8BSC10R24LMC-0010 　 　 　 Controller module w/4GB DDR-III & 1x host board slot & 1x (BBU+Flash module), ESDS 1024RLB subsystem
          8BSC10R24LMD-0010 　 　 　 Controller module w/8GB DDR-III & 1x host board slot & 1x (BBU+Flash module), ESDS 1024RLB subsystem
          8BSC10R24TCMB-0010 　 High IOPS solution 　 Controller module w/2GB DDR-III & 1x host board slot & 1x (Super capacitor + Flash module), ESDS 1024RTCB subsystem
          8BSC10R24TCMC-0010 　 High IOPS solution 　 Controller module w/4GB DDR-III & 1x host board slot & 1x (Super capacitor + Flash module), ESDS 1024RTCB subsystem
          8BSC10R24TCMD-0010 　 High IOPS solution 　 Controller module w/8GB DDR-III & 1x host board slot & 1x (Super capacitor + Flash module), ESDS 1024RTCB subsystem
          8BSC10R24TLMB-0010 　 High IOPS solution 　 Controller module w/2GB DDR-III & 1x host board slot & 1x (BBU+Flash module), ESDS 1024RTLB subsystem
          8BSC10R24TLMC-0010 　 High IOPS solution 　 Controller module w/4GB DDR-III & 1x host board slot & 1x (BBU+Flash module), ESDS 1024RTLB subsystem
          8BSC10R24TLMD-0010 　 High IOPS solution 　 Controller module w/8GB DDR-III & 1x host board slot & 1x (BBU+Flash module), ESDS 1024RTLB subsystem
          Other Accessories
          9571CBBU-0010 　 For BBU replacement 　 Battery backup unit, Li-Ion, for ESDS 1000, BBU ID
          9571CCBM-0010 　 Default Included for ESDS1024RB(by region) 　 Cache backup module, BBU, Flash, for ESDS 1000
          9571CEAR-0010 Default Included Rack ear assembly, for ESDS 1000/2000 subsystems, 19" rack depth
          　 (China only) 　
          9571CPSU-0010 　 Default Included 　 Power supply unit w/FAN module for ESDS 1000,ESDS 2000 and JB 2000-1 subsystems, 460W capacity
          9571CSLIDER-0010 Default Included Slide rail assembly, for ESDS 1000/2000 subsystems, 23"~37" rack depth
          　 (China excluded) 　
          9571SCBM-0010 　 Default Included for ESDS1024RB(by region) 　 Cache backup module, Super capacitor , Flash, for ESDS 1000 and ESDS 2000
          9571SCBU-0010 　 For Super Cap replacement 　 Battery backup unit, Super capacitor, for ESDS 1000 and ESDS 2000
          9DCETRAY-0030 　 　 　 2.5” Hard disk drive tray for ESDS 1000/2000 2U-24bay
          DDR3NNCMB2-0010 　 　 　 2GB DDR-III DIM module for ESDS 3000/1000/2000 series
          DDR3NNCMC4-0010 　 　 　 4GB DDR-III DIM module for ESDS G7i, ESDS 3000/1000/2000 and ESVA x75 subsystems
          DDR3NNCMD-0010 8GB DDR-III DIM module for ESDS G7i, ESDS 3000/1000/2000 and ESVA x75 subsystems
        • Data Service





          Thin provisioning

          Local Replication (Snapshot, Volume Copy/ Mirror)
          Automated Storage Tiering

          Remote Replication



      • ESDS 1024B

      • Small form factor (SFF) arrays for 2.5” drives are optimized for SSD. They reduce energy consumption and require less space, resulting in higher efficiency, greater density, and lower operating costs. Priced for convenient adoption by SMBs, systems ship with enterprise data features and services, including self-encrypting drive (SED) compatibility, optional 4-tier automated storage tiering, and support for secure remote replication. Systems scale to 360 drives with JBOD enclosures.




      ESDS 1024
      ESDS 2012

      Comment
