  • ESDS 1000 series

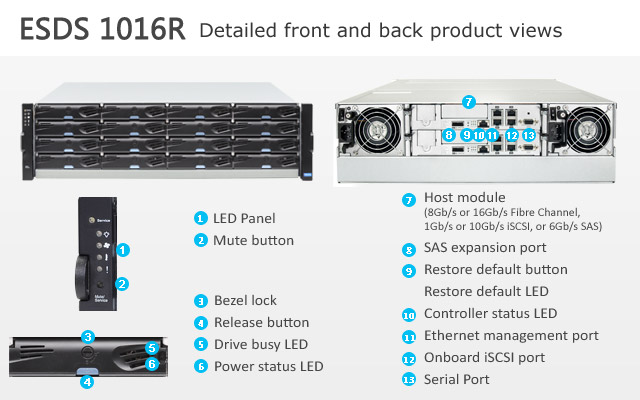

  • ESDS 1016

  • High availability dual controller 3U 16-bay storage designed for powerful yet simple SMB and enterprise service in your SAN applications. Fast performance, modular components, strong data integrity, friendly management, and extensive software bundles–all included.





    Features Specifications Purchase Reference Related Information

    • Product advantages



      Powerful yet affordabl performance

      • Up to 550K IOPS ensure ample aompute bandwidth for diverse applications
      • Throughput reaches 5,500MB/s read and 1,900MB/s write - accelerating major storage jobs and enhancing efficiency


      Hybrid host interface

      • Eight 1Gb/s iSCSI ports plus optional Fibre Channel, SAS, or higher speed iSCSI
      • Choose from 8Gb/s or 16Gb/s Fibre Channel, 10Gb/s iSCSI, 6Gb/s SAS or 12Gb/s SAS


      Data protection solutions

      • Choice of hot-swappable flash module BBU (backup battery unit) or Super Capacitors with flash module to keep data saved in cache live and accessible during power outages and other disruptions
      • With both options cached data remains powered for extended periods of time to ensure recovery even after prolonged outages

      Customizable and scalable

      • Systems tailored to your budget plans and expand conveniently when more capacity is needed
      • Compatible with a range of Infortrend JBOD expansion enclosures, including high density 4U 60-bay units
      • Up to 316 disk drives per system, with support for 6TB drives – nearly 2PB in total capacity

      Enterprise-class data services

        • Include licenses for snapshot, volume copy/mirror, and thin provisioning
        • Support automated storage tiering to leverage SSD speed and enhanced remote replication disaster recovery



        Easy to use

        • Exclusive SANWatch 3.0 browser-based GUI features an intuitive and simple design
        • User interface integrates all major system functions



        Green design

          • Energy efficient components include SoC processor and 80 PLUS power supplies
          • Intelligent drive and fan spin down moderate energy consumption





          Features

          		 　

          Benefits

          Up to 550K IOPS and 5,500 MBps throughput

          		 　 Powerful computing power offers segment-leading storage performance to accelerate all applications, while larage storage throughput helps SMBs save tiem and increase effectiveness without having to spend beyond their means

          Dual controllers and redundant power supplies

          		 　 Fast failover performance and high data availability

          Scalability

          		 　 Expand storage to 1,896TB using a total 316 drives via JBOD enclosures

          Hybrid host interface with optional onboard iSCSI

          		 　 Combine diverse connectivity environments on one system for greater utility

          Multiple host interface options

          		 　 Choose 8Gb/s or 16Gb/s Fibre Channel, 1Gb/s or 10Gb/s iSCSI, or 6Gb/s or 12Gb/s SAS based on your needs and budget

          Automated storage tiering

          		 　 Using SSD, accelerate performance up to three times compared to all-spin storage

          Secure remote replication

          		 　 The backup to offsite locations provides very reliable and safe disaster recovery

          Tiered event messages

          		 　 Clear and easily actionable system notifications keep you informed and in control

          Smart media scan

          		 　 Works in the background to enhance data integrity and prevent corruption

          Thin provisioning

          		 　 Improve storage utilization up to 80% - get more for your investment

          Multi-target snapshot

          		 　 With up to 4096 targets, always have backups to recover vital data at different points in time

          Multi-pair volume copy/mirror

          		 　 Up to 64 pairs ensure entire volumes can be backed up with minimal effort as data grows

          SANWatch 3.0 interface

          		 　 User friendly browser-based deployment and management

          Intelligent drive spin-down and 80 PLUS power supplies

          		 　 Lower costs through reduced power draw and longer drive lifespan
        • Host Ports 　 Onboard Gb/s ports
          　 Eight 1Gb/s iSCSI ports (4 per controller)
          　 More host options:
          　 Four 16Gb/s Fibre Channel ports (2 per controller)
          　 Eight 8Gb/s Fibre Channel ports (4 per controller)
          　 Four 10Gb/s iSCSi ports/ SFP+ or RJ-45 (2 per controller)
          　 Eight 1Gb/s iSCSI ports (4 per controller)
          　 Four 12Gb/s SAS ports (2 per controller)
          　 Four 6Gb/s SAS ports (2 per controller)
          Controller 　 Dual redundant controllers
          Cache Memory 　 Default 4GB (2x2GB), up to 8GB (4x2GB), 16GB (4x4GB) or 32GB (4x8GB)
          　 ** Default installed memory may vary by model, region, and other factors. Contact our sales representatives for details.
          Cache Backup Techniques 　 Super Capacitor + Flash module or BBU (hot-swappable) + Flash module
          Drive Connectivity 　 6Gb/s SAS connectivity
          　 S.M.A.R.T. support
          　 Automatic bad-sector reassignment
          　 Dedicated bandwidth to each connected drive
          Supported Drives 　 2.5" SAS SSDs - 200GB, 400GB or 800GB
          　 2.5" SATA SSDs* - 100GB, 200GB, 400GB or 800GB
          　 2.5" 10,000RPM SAS drives - 300GB, 600GB, 900GB or 1.2TB
          　 3.5" 15,000 RPM SAS drives - 300GB, 450GB or 600GB
          　 3.5" 7,200 RPM Nearline SAS drives - 1TB, 2TB,  3TB, 4TB or 6TB
          　 3.5" 7,200 RPM SATA drives* - 1TB, 2TB, 3TB, 4TB or 5TB
          　 *MUX board required when using SATA drives
          　 ** For the latest compatibility details, please contact our sales representatives
          Maximum Number of Drives 　 Per system: 16
          　 Via JBOD: 316
          Corresponding Expansion Enclosure 　 Please refer to Related Information
          Form Factor 　 3U
          RAID Functionality 　 Global, dedicated or enclosure hot-spare
          　 RAID levels supported : RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60
          　 Online expansion by:
          　 Adding new drives
          　 Copying and replacing drives with drives of larger capacity
          　 RAID migration
          　 Configurable stripe size and write policy per system
          　 Intelligent drive handling
          　  In degraded mode: skips irreparable blocks to continue rebuild
          　  In normal operation: data-block verification and repair
          Data Services 　 Thin provisioning
          　 SSD Cache*
          　 SED (Self-encrypting drives)
          　 Automated storage tiering*
          　 Local replication**
          　    Snapshot
          　    Volume copy/ mirror
          　 Remote replication*
          　    Synchronous or asynchronous
          　 * Optional
          　 ** Available with Standard license and optional Advanced license
          Green Design 　 80 PLUS-certified power supplies delivering more than 80% energy efficiency
          　 Intelligent multi-level drive spin-down
          Availability and Reliability 　 Redundant, hot-swappable hardware modules
          　 CacheSafe technology
          　 Multi-pathing support (EonPath)
          　 Device mapper support
          Notification 　 Various event notification methods including email, LAN broadcast, fax, SNMP traps, SMS, and Skype.
          Management 　 Web-based SANWatch management software
          　 RS232 serial port for local access to firmware-embedded utility
          　 Automated cache flush and caching mode operation per enclosure status
          　 Telnet and SSH system monitoring via Ethernet
          　 Platform-independent firmware management GUI
          　 Module status LED indicators: component presence detection & thermal sensors via I2C bus
          OS Support 　 Windows Server 2008, 2008 R2, 2012, 2012 R2 (including Hyper-V)
          　 RedHat Enterprise Linux
          　 SUSE Linux Enterprise
          　 Sun Solaris
          　 Mac OS X
          　 VMware
          　 Citrix
          　 IBM AIX
          　 HP-UX
          　 ** For the latest OS support details, please contact our sales representatives.
          Service and Support 　 Standard service: 2-year limited hardware/software warranty and 8x5 phone, web, and email support
          　 ​Upgrade/Extension service*: replacement part dispatch on the next business day (up to 5 years)
          　 Advanced Service: 24x7 phone, web and email support + onsite diagnostics on the next business day
          　 ​Premium Service: 24x7 phone, web and email support + onsite diagnostics in 4 hours
          　 * Optional
          　 ** Service may vary by region
          Power 　 Power supplies: Two 460W
          　 AC voltage: 100VAC @ 8A to 240VAC @ 4A with PFC (auto-switching)
          　 Frequency: 50-60 Hz
          Environmental 　 Temperature:
          　 Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
          　 Non-operating: -40 to 60°
          　 Altitude: Sea level to 3660m (12,000ft) operating / sea level to 12,192m (40,000ft) non-operating
          　 Relative humidity: 5 to 95% non-condensing, operating and non-operating
          Regulatory 　 Safty: UL, BSMI, CB, EAC
          　 Electromangnetic Campatibility: CE, BSMI, FCC, KC
          Dimensions 　 448mm (W) x 130mm (H) x 500mm (D)
          　 **Without chassis ears / protrusions
          Weight 　 21.66kg/ 47.75lbs (without HDDs)
          Package Dimensions 　 779mm (W) x 564mm (H) x 597mm (D)

        • The “Purchase Reference” feature enables customers to request a quote from Infortrend sales representatives. Please note that actual product orders and purchases are not processed via Infortrend's website. If you wish to order and purchase Infortrend products, please contact our sales representatives directly.


          Please note the following:


          1. The list below is based on standard worldwide shipment, models may vary by region. Infortrend sales representatives can provide more information about shipment variations in your region.
          2. “Default Included” means that a component is standard included in system orders. Customers may order additional units to serve as spare components.
          System
          DS1016G00000B 　 　 　 EonStor DS 1000 3U/16bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports+1x host board slot(s), 1x2GB, 2x(PSU+FAN Module), 1, 16xHDD trays and 1xRackmount kit
          DS1016G00000C 　 　 　 EonStor DS 1000 3U/16bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports+1x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 1, 16xHDD trays and 1xRackmount kit
          DS1016G00000D 　 　 　 EonStor DS 1000 3U/16bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports+1x host board slot(s), 2x4GB, 2x(PSU+FAN Module), 1, 16xHDD trays and 1xRackmount kit
          DS1016G00000F 　 　 　 EonStor DS 1000 3U/16bay, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports+1x host board slot(s), 2x8GB, 2x(PSU+FAN Module), 1, 16xHDD trays and 1xRackmount kit
          DS1016GT0000B 　 High IOPS solution 　 EonStor DS 1000 3U/16bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports +1x host board slot(s), 1x2GB, 2x(PSU+FAN Module), 16xHDD trays and 1xRackmount kit
          DS1016GT0000C 　 High IOPS solution 　 EonStor DS 1000 3U/16bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports +1x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 16xHDD trays and 1xRackmount kit
          DS1016GT0000D 　 High IOPS solution 　 EonStor DS 1000 3U/16bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports +1x host board slot(s), 2x4GB, 2x(PSU+FAN Module), 16xHDD trays and 1xRackmount kit
          DS1016GT0000F 　 High IOPS solution 　 EonStor DS 1000 3U/16bay, High IOPS solutions, Single controller subsystem including 1x6Gb SAS EXP. Port, 4x1G iSCSI ports +1x host board slot(s), 2x8GB, 2x(PSU+FAN Module), 16xHDD trays and 1xRackmount kit
          DS1016R0C000B 　 　 　 EonStor DS 1000 3U/16bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 16xHDD trays and 1xRackmount kit
          DS1016R0C000C 　 　 　 EonStor DS 1000 3U/16bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x2GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 16xHDD trays and 1xRackmount kit
          DS1016R0C000D 　 　 　 EonStor DS 1000 3U/16bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x4GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 16xHDD trays and 1xRackmount kit
          DS1016R0C000F 　 　 　 EonStor DS 1000 3U/16bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x8GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 16xHDD trays and 1xRackmount kit
          DS1016R0L000B 　 　 　 EonStor DS 1000 3U/16bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 16xHDD trays and 1xRackmount kit
          DS1016R0L000C 　 　 　 EonStor DS 1000 3U/16bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x2GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 16xHDD trays and 1xRackmount kit
          DS1016R0L000D 　 　 　 EonStor DS 1000 3U/16bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x4GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 16xHDD trays and 1xRackmount kit
          DS1016R0L000F 　 　 　 EonStor DS 1000 3U/16bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x8GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 16xHDD trays and 1xRackmount kit
          DS1016RTC000B 　 High IOPS solution 　 EonStor DS 1000 3U/16bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 16xHDD trays and 1xRackmount kit
          DS1016RTC000C 　 High IOPS solution 　 EonStor DS 1000 3U/16bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x2GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 16xHDD trays and 1xRackmount kit
          DS1016RTC000D 　 High IOPS solution 　 EonStor DS 1000 3U/16bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x4GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 16xHDD trays and 1xRackmount kit
          DS1016RTC000F 　 High IOPS solution 　 EonStor DS 1000 3U/16bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x8GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 16xHDD trays and 1xRackmount kit
          DS1016RTL000B 　 High IOPS solution 　 EonStor DS 1000 3U/16bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 16xHDD trays and 1xRackmount kit
          DS1016RTL000C 　 High IOPS solution 　 EonStor DS 1000 3U/16bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x2GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 16xHDD trays and 1xRackmount kit
          DS1016RTL000D 　 High IOPS solution 　 EonStor DS 1000 3U/16bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x4GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 16xHDD trays and 1xRackmount kit
          DS1016RTL000F 　 High IOPS solution 　 EonStor DS 1000 3U/16bay, High IOPS solutions, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 4x8GB, 2x(PSU+FAN Module), 2x (BBU+Flash module), 16xHDD trays and 1xRackmount kit
          Host board
          RER01G0HIO4-0010 　 　 　 EonStor / EonStor DS host board with 4 x 1Gb/s iSCSI ports
          RER10G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 10Gb/s iSCSI (RJ-45) ports
          RES10G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 10Gb/s iSCSI (SFP+) ports
          RFC08G0HIO4-0010 　 　 　 EonStor / EonStor DS host board with 4 x 8Gb/s FC ports
          RFC16G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 16Gb/s FC ports
          RSS06G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x 6Gb/s SAS ports
          RSS12G0HIO2-0010 　 　 　 EonStor / EonStor DS host board with 2 x12Gb/s SAS ports
          Hard Disk Drive/Solid State Drive/MUX Board
          9AHMUX3G-0010 　 　 　 MUX board for ESDS 3000(2.5" SATA drives), ESDS 1000(3.5",2.5" SATA drives) and ESDS 2000(3.5",2.5" SATA drives)
          H1090XB1XX1-0030 　 　 　 HGST 2.5" SAS 6Gb/s HDD 900GB,10000RPM, 1 in 1 Packing
          H72A1XA3XX1-0030 　 　 　 SATA 6Gb/s HDD, 2TB, 7200RPM, 1 in 1 Packing
          H72A1XS2XX1-0030 　 　 　 Hitachi SAS 6Gb/s HDD, 2TB, 7200RPM, 1 in 1 Packing
          H72A2XA2XX1-0030 　 　 　 SATA 6Gb/s HDD, 3TB, 7200RPM, 1 in 1 Packing
          H72A2XS2XX1-0030 　 　 　 Hitachi SAS 6Gb/s HDD, 3TB, 7200RPM, 1 in 1 Packing
          H72A3XA3XX1-0030 　 　 　 Hitachi SATA 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing
          HELH72S2400-00301 　 　 　 HGST 3.5" SAS 6Gb/s HDD 4TB, 7200RPM, 1 in 1 Packing
          HELH72S2600-00301 　 　 　 HGST SAS 6Gb/s HDD, 6TB, 7200RPM, 1 in 1 Packing
          HELS72A3200-00301 　 　 　 Seagate 3.5" SATA 6Gb/s HDD 2TB, 7200RPM, 1 in 1 Packing
          HELS72A3300-00301 　 　 　 Seagate 3.5" SATA 6Gb/s HDD 3TB, 7200RPM, 1 in 1 Packing
          HELS72A3400-00301 　 　 　 Seagate 3.5" SATA 6Gb/s HDD 4TB, 7200RPM, 1 in 1 Packing
          HELS72A3500-00301 　 　 　 Seagate SATA 6Gb/s HDD, 5TB, 7200RPM, 1 in 1 Packing
          HELS72A3600-00301 　 　 　 Seagate Enterprise 3.5" SATA 6Gb/s HDD 6TB, 7200RPM, 1 in 1 Packing
          HELS72S2200-00301 　 　 　 Seagate 3.5" SAS 6Gb/s HDD 2TB, 7200RPM, 1 in 1 Packing
          HELS72S2300-00301 　 　 　 Seagate 3.5" SAS 6Gb/s HDD 3TB, 7200RPM, 1 in 1 Packing
          HELS72S2400-00301 　 　 　 Seagate SAS 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing
          HELT72S2400-00301 　 　 　 Toshiba SAS 6Gb/s HDD, 4TB, 7200RPM, 1 in 1 Packing
          HESH10S2120-00301 　 　 　 HGST 2.5" SAS 6Gb/s HDD 1.2TB,10000RPM, 1 in 1 Packing
          HEST10S2030-00301 　 　 　 Toshiba 2.5" SAS 6Gb/s HDD 300GB, 10000RPM, 1 in 1 Packing
          HEST10S2060-00301 　 　 　 Toshiba 2.5" SAS 6Gb/s HDD 600GB, 10000RPM, 1 in 1 Packing
          HESTSSS3020-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 200GB, 1 in 1 Packing
          HESTSSS3040-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 400GB, 1 in 1 Packing.
          HESTSSS3080-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 800GB, 1 in 1 Packing.
          HESTSSS3160-00301 　 　 　 Toshiba Enterprise 2.5" SAS 12Gb/s MLC SSD, 1.6TB, 1 in 1 Packing.
          HSLT72A3200-00301 　 　 　 Toshiba Surveillance 3.5" SATA 6Gb/s HDD 2TB, 7200RPM, 3-year warranty, 1 in 1 Packing
          HSLT72A3300-00301 　 　 　 Toshiba Surveillance 3.5" SATA 6Gb/s HDD 3TB, 7200RPM, 3-year warranty, 1 in 1 Packing
          HSLT72A3400-00301 　 　 　 Toshiba Surveillance 3.5" SATA 6Gb/s HDD 4TB, 7200RPM, 3-year warranty, 1 in 1 Packing
          Data Service License
          SOFT-DRSDS-0010 　 　 　 EonStor DS Advanced Local Replication License (Snapshot and Volume Copy/Mirror)
          SOFT-REMDS-0010 　 　 　 EonStor DS Remote Replication License
          SOFT-SSDDS01-0010 　 　 　 EonStor DS SSD Cache License
          SOFT-TIERDS-0010 　 　 　 EonStor DS Automated Storage Tiering(2 tiers)
          SOFT-TIERDS01-0010 　 　 　 EonStor DS Advanced Automated Storage Tiering License(4 tiers)
          Expansion enclosure
          JB2016G01 　 　 　 3U/16bay Single controller JBOD including 1x 6Gb SAS port, 2x(PSU+FAN module), 16xHDD trays and 1xRackmount kit
          JB2016R01 　 　 　 3U/16bay Dual redundant controller JBOD including 2x 6Gb SAS port, 2x(PSU+FAN module), 12xHDD trays and 1xRackmount kit
          JB2048G00 　 　 　 4U/48bay Single controller JBOD including 1x 6Gb SAS port, 3x(PSU+FAN module), 48xHDD trays and 1xRackmount kit
          JB2048R00 　 　 　 4U/48bay Dual redundant controller JBOD including 2x 6Gb SAS port, 3x(PSU+FAN module), 48xHDD trays and 1xRackmount kit
          JB2060G00 　 　 　 4U/60bay Single controller JBOD including 1x 6Gb SAS port, 2x(PSU+FAN module), 60xHDD trays and 1xRackmount kit
          JB2060R00 　 　 　 4U/60bay Dual redundant controller JBOD including 2x 6Gb SAS port, 2x(PSU+FAN module), 60xHDD trays and 1xRackmount kit
          Service & Warranty
          WTE2DS1016G-0010 　 　 　 1-year extended warranty for ESDS 1016G/2016G models
          WTE2DS1016R-0010 　 　 　 1-year extended warranty for ESDS 1016R/2016R models
          Cable/SFP Module
          9270CFCCab04-0010 　 Suggested item for 8Gb/16Gb FC and 10Gb iSCSI (SFP+)host 　 Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 1 Meter
          9270CFCCab05-0010 　 Suggested item for 8Gb/16Gb FC host and 10Gb iSCSI (SFP+)host 　 Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 5 Meters
          9270CFCCab06-0010 　 Suggested item for 8Gb/16Gb FC host and 10Gb iSCSI (SFP+)host 　 Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 10 Meters
          9270CmSASCab7-0030 　 　 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 50 Centimeters
          9270CmSASCab8-0030 　 　 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 120 Centimeters
          9270CmSASCab9-0030 　 　 　 SAS external cable, Pull type, SFF-8088 to SFF-8088, 260 Centimeters
          9370CmSASCab1-0030 　 　 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 50 Centimeters
          9370CmSASCab2-0030 　 　 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 120 Centimeters
          9370CmSASCab3-0030 　 　 　 SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 260 Centimeters
          9370CSFP10G-0010 　 Suggested item for 10Gb iSCSI (SFP+) host 　 10G BASE-SR SFP+ Transceiver, LC, multi-mode
          9370CSFP16G-0010 　 Suggested item for 16Gb FC host 　 16Gb/s Fibre Channel SFP optical transceiver, LC, wave-length 850nm, multi-mode
          9370CSFP8G-0010 　 Suggested item for 8Gb FC host 　 Fibre Channel 8.5 / 4.25 / 2.125 GBd Small Form Pluggable Optical Transceiver, LC, wave-length 850nm, multi-mode
          9373ASCAB-0010 　 ESDS 1016G 　 RS-232C cable, DB9 to DB9
          9373AYCAB-0010 　 Default Included for ESDS 1016R 　 DB-9 Y-cable for dual-controller subsystems; maintenance-free during controller failover/failback
          Controller module
          83SC10GH164B-0010 　 High IOPS solution 　 Controller module w/2GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 1016GT subsystem
          83SC10GH164C-0010 　 High IOPS solution 　 Controller module w/4GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 1016GT subsystem
          83SC10GH164D-0010 　 High IOPS solution 　 Controller module w/8GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 1016GT subsystem
          83SC10GH164F-0010 　 High IOPS solution 　 Controller module w/16GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 1016GT subsystem
          83SC10GH16MB-0010 　 　 　 Controller module w/2GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 1016G subsystem
          83SC10GH16MC-0010 　 　 　 Controller module w/4GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 1016G subsystem
          83SC10GH16MD-0010 　 　 　 Controller module w/8GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 1016G subsystem
          83SC10GH16MF-0010 　 　 　 Controller module w/16GB DDR-III, 4x1G iSCSI ports & 1x host board slot, ESDS 1016G subsystem
          83SC10RH16CMB-0010 　 　 　 Controller module w/2GB DDR-III & 1x host board slot & 1x (Super capacitor + Flash module), ESDS 1016RC subsystem
          83SC10RH16CMC-0010 　 　 　 Controller module w/4GB DDR-III & 1x host board slot & 1x (Super capacitor + Flash module), ESDS 1016RC subsystem
          83SC10RH16CMD-0010 　 　 　 Controller module w/8GB DDR-III & 1x host board slot & 1x (Super capacitor + Flash module), ESDS 1016RC subsystem
          83SC10RH16CMF-0010 　 　 　 Controller module w/16GB DDR-III & 1x host board slot & 1x (Super capacitor + Flash module), ESDS 1016RC subsystem
          83SC10RH16LMB-0010 　 　 　 Controller module w/2GB DDR-III & 1x host board slot & 1x (BBU+Flash module), ESDS 1016R subsystem
          83SC10RH16LMC-0010 　 　 　 Controller module w/4GB DDR-III & 1x host board slot & 1x (BBU+Flash module), ESDS 1016R subsystem
          83SC10RH16LMD-0010 　 　 　 Controller module w/8GB DDR-III & 1x host board slot & 1x (BBU+Flash module), ESDS 1016R subsystem
          83SC10RH16LMF-0010 　 　 　 Controller module w/16GB DDR-III & 1x host board slot & 1x (BBU+Flash module), ESDS 1016R subsystem
          83SC10RH16TCB-0010 　 High IOPS solution 　 Controller module w/2GB DDR-III & 1x host board slot & 1x (Super capacitor + Flash module), ESDS 1016RTC subsystem
          83SC10RH16TCC-0010 　 High IOPS solution 　 Controller module w/4GB DDR-III & 1x host board slot & 1x (Super capacitor + Flash module), ESDS 1016RTC subsystem
          83SC10RH16TCD-0010 　 High IOPS solution 　 Controller module w/8GB DDR-III & 1x host board slot & 1x (Super capacitor + Flash module), ESDS 1016RTC subsystem
          83SC10RH16TCF-0010 　 High IOPS solution 　 Controller module w/16GB DDR-III & 1x host board slot & 1x (Super capacitor + Flash module), ESDS 1016RTC subsystem
          83SC10RH16TLB-0010 　 High IOPS solution 　 Controller module w/2GB DDR-III & 1x host board slot & 1x (BBU+Flash module), ESDS 1016RTL subsystem
          83SC10RH16TLC-0010 　 High IOPS solution 　 Controller module w/4GB DDR-III & 1x host board slot & 1x (BBU+Flash module), ESDS 1016RTL subsystem
          83SC10RH16TLD-0010 　 High IOPS solution 　 Controller module w/8GB DDR-III & 1x host board slot & 1x (BBU+Flash module), ESDS 1016RTL subsystem
          83SC10RH16TLF-0010 　 High IOPS solution 　 Controller module w/16GB DDR-III & 1x host board slot & 1x (BBU+Flash module), ESDS 1016RTL subsystem
          Other Accessories
          9571CBBU-0010 　 For BBU replacement 　 Battery backup unit, Li-Ion, for ESDS 1000, BBU ID
          9571CCBM-0010 　 Default Included for ESDS 1016R(by region) 　 Cache backup module, BBU, Flash, for ESDS 1000
          9571CDTRAY-0030 　 Default Included 　 Hybrid tray to accommodating 2.5" or 3.5" hard disk drives for ESDS 1000, ESDS 2000 and JB2000-1
          9571CEAR-0010 　 Default Included (China Only) 　 Rack ear assembly, for ESDS 1000/2000 subsystems, 19" rack depth
          9571CPSU-0010 　 Default Included 　 Power supply unit w/FAN module for ESDS 1000,ESDS 2000 and JB 2000-1 subsystems, 460W capacity
          9571CSLIDER-0010 　 Default Included (China Excluded) 　 Slide rail assembly, for ESDS 1000/2000 subsystems, 23"~37" rack depth
          9571SCBM-0010 　 Default Included for ESDS1016R(by region) 　 Cache backup module, Super capacitor , Flash, for ESDS 1000 and ESDS 2000
          9571SCBU-0010 　 For Super Cap replacement 　 Battery backup unit, Super capacitor, for ESDS 1000 and ESDS 2000
          DDR3NNCMB2-0010 　 　 　 2GB DDR-III DIM module for ESDS 3000/1000/2000 series
          DDR3NNCMC4-0010 　 　 　 4GB DDR-III DIM module for ESDS G7i, ESDS 3000/1000/2000 and ESVA x75 subsystems
          DDR3NNCMD-0010 　 　 　 8GB DDR-III DIM module for ESDS G7i, ESDS 3000/1000/2000 and ESVA x75 subsystems
        • Data Service





          Thin provisioning

          Local Replication (Snapshot, Volume Copy/ Mirror)
          Automated Storage Tiering

          Remote Replication

      • ESDS 1016

      • High availability dual controller 3U 16-bay storage designed for powerful yet simple SMB and enterprise service in your SAN applications. Fast performance, modular components, strong data integrity, friendly management, and extensive software bundles–all included.





      ESDS 1012
      ESDS 1024

      Comment
